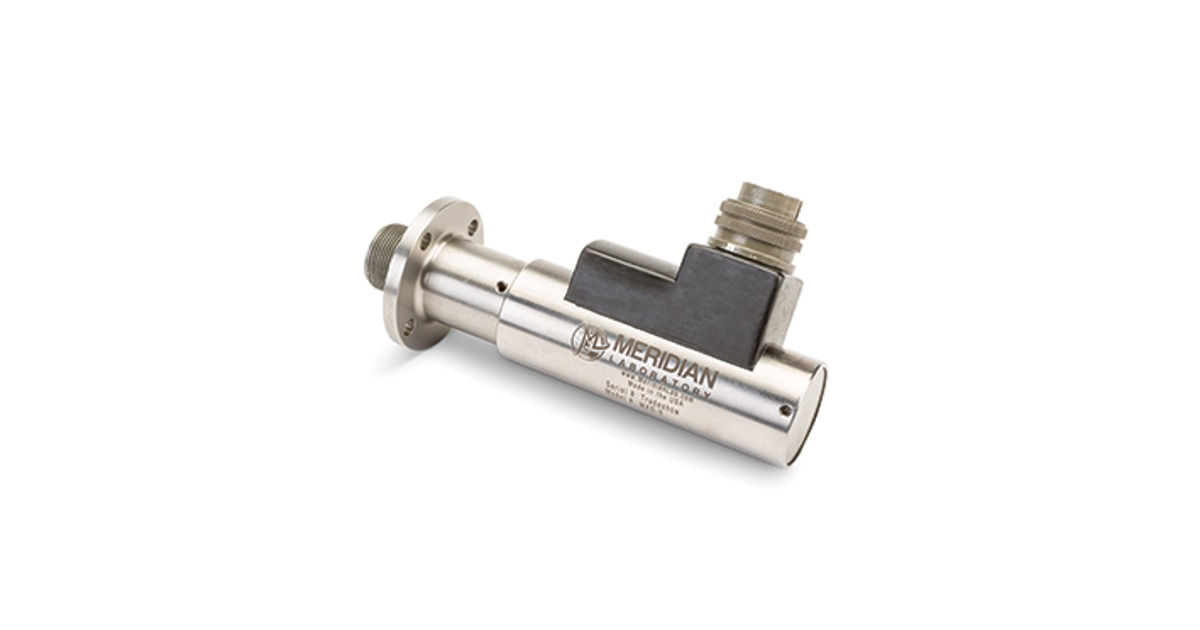

Meridian Laboratory ROTOCON MXO Harsh-Environment Slip Rings
Meridian Laboratory ROTOCON MXO Harsh-Environment Slip Rings
ROTOCON MXO is Meridian Laboratory’s sealed rotary electrical connector family for wet, dusty and demanding industrial installations. It is intended for applications such as filling equipment and oceanographic winches. Selecting it requires both an electrical model and an explicit environmental configuration: the broad family description and the individual model table do not state the same protection level.
Review Summary
Consider MXO when a rotating power or signal connection must be specified together with seals, compatible terminations and an environmental installation. The important qualification is that IP68 is described as an available family capability, while the listed standard model rows say up to IP67 with appropriate terminations. Obtain the exact supplied protection and immersion conditions before committing the design.
Role Sealed rotating electrical interface for configured power and signals MXO-2 example 2 contacts; 18 A/contact; 36 A/unit; 750 rpm maximum; 2.715 in body length MXO-12 example 12 contacts; 18 A/contact; 216 A/unit; 500 rpm maximum; 6.015 in body length MXO-20 example 20 contacts; 10 A/contact; 200 A/unit; 400 rpm maximum; 8.655 in body length MXO-30 example 30 contacts; 2.75 A/contact; 82.5 A/unit; 350 rpm maximum; 11.955 in body length Listed body diameter 1.63 in for the cited model-table examples Housing 304 stainless steel Protection distinction Category: IP68 available; listed model rows: up to IP67 with appropriate terminations Mounting Rotor flange or body flange arrangements available Price Request a quote for electrical, sealing and termination scope Applications and Industries
Filling and bottling machinery, packaging equipment, oceanographic winches and sealed rotating installations
Industrial automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Role | Sealed rotating electrical interface for configured power and signals |
| MXO-2 example | 2 contacts; 18 A/contact; 36 A/unit; 750 rpm maximum; 2.715 in body length |
| MXO-12 example | 12 contacts; 18 A/contact; 216 A/unit; 500 rpm maximum; 6.015 in body length |
| MXO-20 example | 20 contacts; 10 A/contact; 200 A/unit; 400 rpm maximum; 8.655 in body length |
| MXO-30 example | 30 contacts; 2.75 A/contact; 82.5 A/unit; 350 rpm maximum; 11.955 in body length |
| Listed body diameter | 1.63 in for the cited model-table examples |
| Housing | 304 stainless steel |
| Protection distinction | Category: IP68 available; listed model rows: up to IP67 with appropriate terminations |
| Mounting | Rotor flange or body flange arrangements available |
| Price | Request a quote for electrical, sealing and termination scope |
