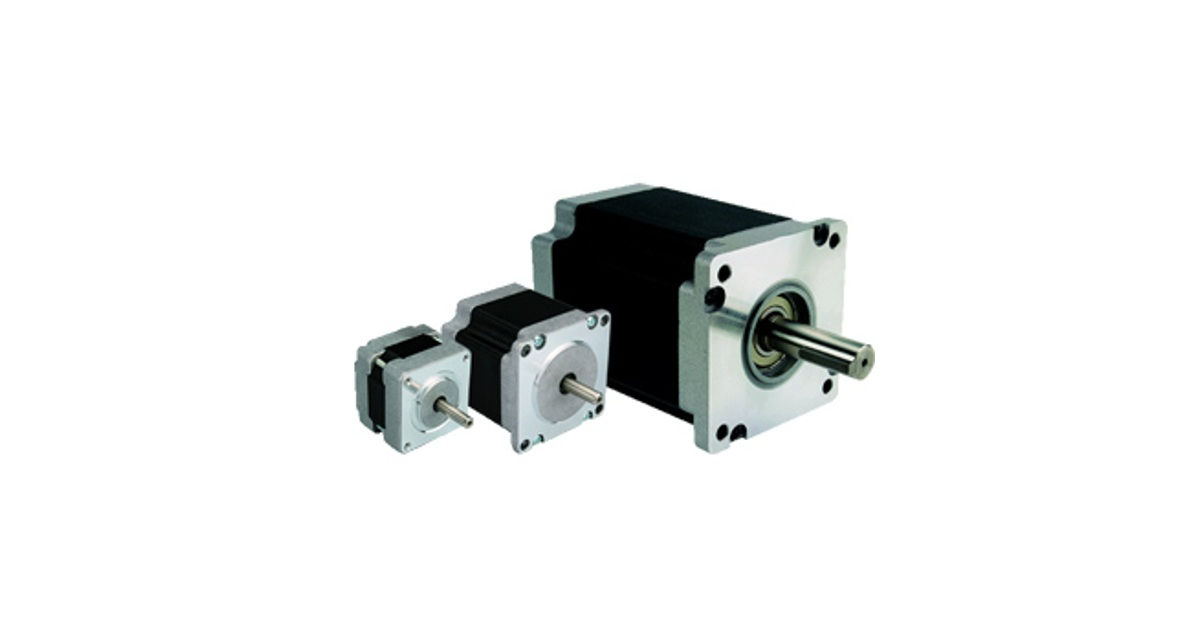

Leadshine Two-Phase Stepper Motors
Leadshine Two-Phase Stepper Motors
Leadshine’s listed two-phase stepper portfolio uses a 1.8-degree mechanical step. It spans NEMA 14, 16, 17, 23, 34 and 42 frames, with holding-torque ratings from 0.07 to 28 N.m across the family. Exact winding and mechanical variants determine the motor-and-driver combination.
Review Summary
A broad family for open-loop machine positioning, particularly where a standard two-phase stepper drive is already part of the design. Select against the operating speed curve and winding data, rather than choosing the highest holding-torque number that fits the flange.
Motor architecture Two-phase hybrid stepper Mechanical full-step angle 1.8 degrees Full steps per revolution 200 Listed frames NEMA 14, 16, 17, 23, 34 and 42 Holding-torque family span 0.07–28 N.m Drive requirement Compatible two-phase stepper drive Applications and Industries
Incremental positioning axes whose torque, speed and mechanical envelope match the chosen motor and drive.
Manufacturing and automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Motor architecture | Two-phase hybrid stepper |
| Mechanical full-step angle | 1.8 degrees |
| Full steps per revolution | 200 |
| Listed frames | NEMA 14, 16, 17, 23, 34 and 42 |
| Holding-torque family span | 0.07–28 N.m |
| Drive requirement | Compatible two-phase stepper drive |
