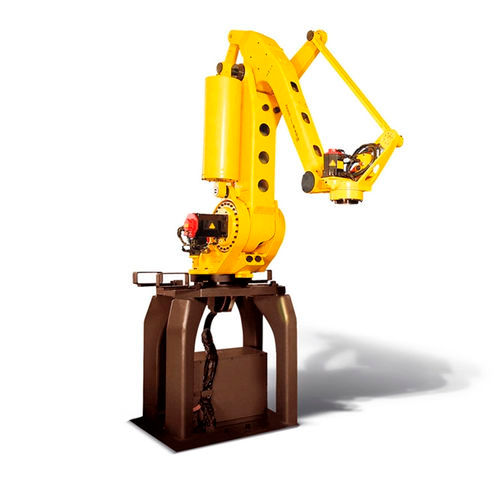

FANUC M-410iC/700
The FANUC M-410iC/700 is a 4-axis palletizing robot with a maximum wrist payload of 700 kg and a horizontal reach of 3143 mm, repeatable to ±0.05 mm. It is a dedicated palletizing robot. The mechanical unit weighs 2700 kg (controller included), mounts on the floor, and runs on the R-30iB Plus (A- or B-cabinet) controller.
The price shown is indicative only. It is not final and may change; contact us for a confirmed quote.
- Payload: 700 kg
- Reach: 3143 mm
- Repeatability: ±0.05 mm
- Axes: 4
- Controller: FANUC R-30iB Plus (A- or B-cabinet)
- Interfaces: EtherNet/IP; PROFINET; EtherCAT; DeviceNet; CC-Link; CC-Link IE Field; PROFIBUS; FL-net; Modbus; OPC UA
- Certifications: PL e, Cat. 4, SIL 3 emergency stop function; PL d, Cat. 3, SIL 2 position/speed check function
- Details: 4 controlled axes; max. wrist payload 700 kg; horizontal reach 3143 mm; repeatability ±0.05 mm; mass 2700 kg (controller included); installation floor; controller R-30iB Plus (A- or B-cabinet).
