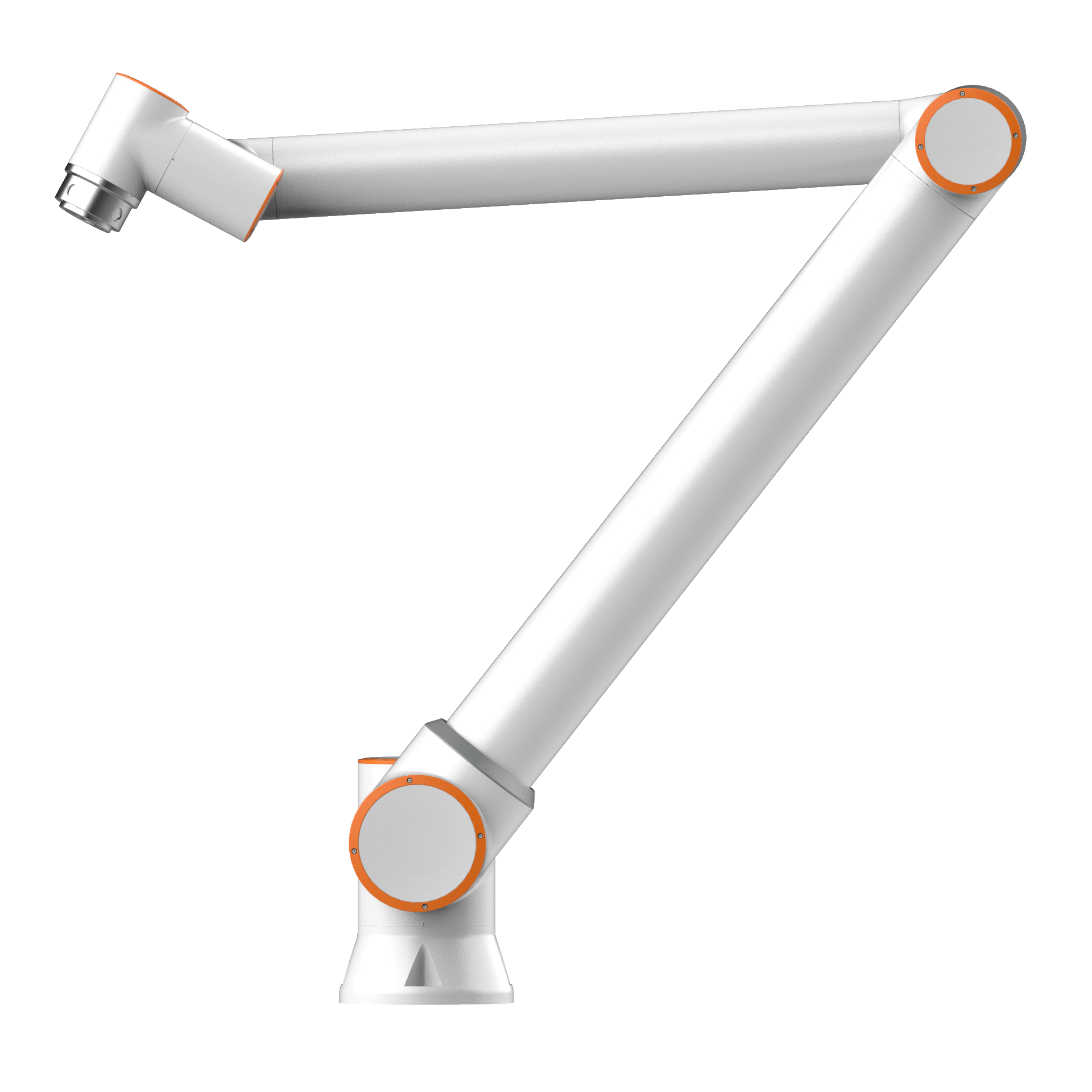

FAIRINO FR5-WML
The FAIRINO FR5-WML is a 6-axis collaborative robot with a rated payload of 5 kg and a reach of 1900 mm, repeatable to ±0.02 mm. Its typical TCP speed is 1 m/s, and the arm weighs about 22 kg on a 149 mm base that mounts in any orientation. The arm is rated IP54, with IP65 as an option, and its tool flange provides two digital inputs, two digital outputs, one analog input and one analog output with a 24 V / 1.5 A supply. It is used for machine tending, pick-and-place, packaging, inspection and light assembly.
The price shown is indicative only. It is not final and may change; contact us for a confirmed quote.
- Payload: 5 kg
- Reach: 1900 mm
- Repeatability: ±0.02 mm
- Speed: 1 m/s typical TCP speed
- Axes: 6
- Controller: FAIRINO controller / web app / teach pendant
- Interfaces: Digital/analog I/O; TCP/IP; Modbus TCP/RTU; PROFINET; EtherNet/IP; CC-Link; SDK for Python, C#, C++, ROS/ROS2
- Certifications: CE; ISO 10218 / ISO/TS 15066
- Details: Weight about 22 kg; base footprint 149 mm; IP54 (IP65 optional); noise below 65 dB; mounting in any orientation; tool I/O: 2 digital inputs, 2 digital outputs, 1 analog input, 1 analog output; tool I/O supply 24 V / 1.5 A; rated power 260 W; maximum power 310 W; operating temperature 0 to 45 °C; humidity up to 90% RH non-condensing; materials aluminium and steel.
