Epson Robots T6-602S

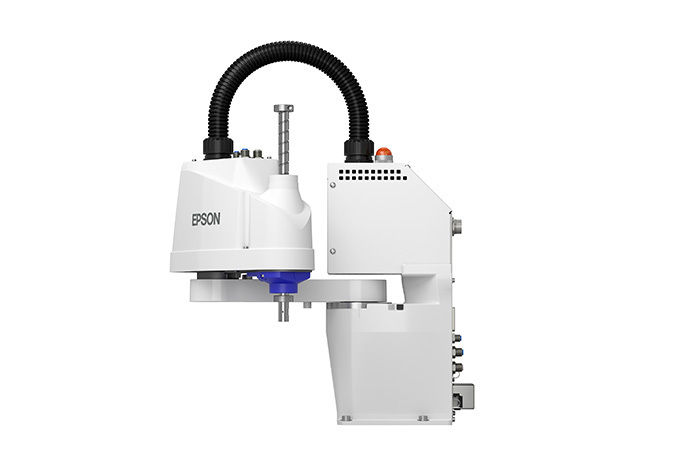

Discontinued model: no longer part of the current Epson product range. The Epson T6-602S is a 4-axis SCARA robot with a 6 kg maximum payload, 600 mm arm length and ±0.04 mm repeatability. It is an all-in-one design that saves space and cabling in simple pick-and-place cells. The arm weighs 22 kg, mounts on a tabletop and has its controller built into the base. Its standard cycle time is 0.49 s.
The price shown is indicative only. It is not final and may change; contact us for a confirmed quote.
- Payload: 6 kg
- Reach: 600 mm
- Repeatability: ±0.04 mm
- Speed: 0.49 s standard cycle time
- Axes: 4
- Controller: Built-in controller
- Interfaces: User I/O: 18 inputs / 12 outputs; hand I/O: 6 inputs / 4 outputs; fieldbus slave: DeviceNet, PROFIBUS-DP, PROFINET, CC-Link, EtherNet/IP, EtherCAT
- Certifications: CE; ANSI/RIA R15.06-2012; NFPA 79; EN ISO 10218-1; EN ISO 13849-1; EN 60204-1; RoHS
- Details: 4 axes; max. payload 6 kg; arm length 600 mm; repeatability ±0.04 mm; weight 22 kg; mounting tabletop; standard cycle time 0.49 s; built-in controller.
