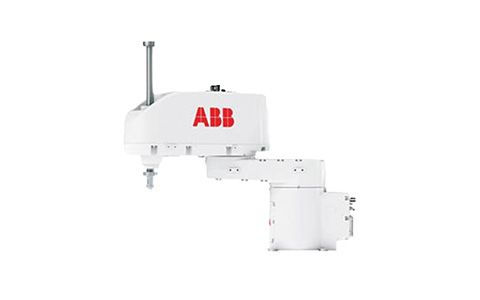

ABB Robotics IRB 910SC
The ABB IRB 910SC is a four-axis SCARA robot with a rated payload of 3 kg and a maximum of 6 kg, a reach of 450, 550 or 650 mm and a position repeatability of ±0.015 mm. It is built for small-parts assembly, material handling, parts inspection, tray kitting and machine loading. The robot weighs 24.5 to 25.5 kg, is tabletop mounted, is rated IP20 and runs on the IRC5 Compact controller.
The price shown is indicative only. It is not final and may change; contact us for a confirmed quote.
- Payload: 6 kg
- Reach: 450–650 mm
- Repeatability: ±0.015 mm
- Axes: 4
- Controller: ABB IRC5 Compact
- Interfaces: DeviceNet; PROFINET; PROFIBUS DP; EtherNet/IP; Interbus; CC-Link; Allen-Bradley Remote I/O; 16 digital inputs; 16 digital outputs
- Certifications: ISO 10218-1; EN 60204-1; ANSI/RIA R15.06
- Details: 4 axes; rated payload 3 kg, max. payload 6 kg; reach 450, 550 or 650 mm; repeatability ±0.015 mm (axes 1 and 2), ±0.01 mm (axis 3), ±0.005° (axis 4); mass 24.5–25.5 kg; mounting tabletop; protection IP20; controller IRC5 Compact.
