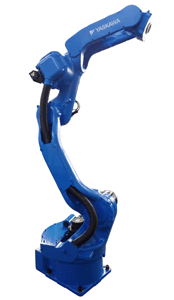

Yaskawa Motoman MH12 Review: Specs, Uses, Pros & Cons
Yaskawa Motoman MH12 review: Axes — 6. Payload — 12 kg. This review examines the documented configuration, engineering tradeoffs and practical buying questions for this product.
Quick Verdict
A versatile moderate-payload robot for compact handling and tending. Its arm geometry and through-hole tool routing are especially relevant when access and cable interference limit the cell.
Technical Specifications
Technical field | Documented configuration / buying implication |
|---|---|
Axes | 6 |
Payload | 12 kg |
Horizontal reach | 1,440 mm |
Arm design | Curved upper arm and double-yoke arrangement |
Tool routing | 50 mm through-hole described |
Applications | Handling and multipurpose automation |
Price | Request a configuration-specific quotation |
Design and Engineering Assessment
The 50 mm routing passage is useful only if the chosen service bundle fits its bend and motion requirements. Curved upper-arm geometry and a double-yoke arrangement can improve access, including some work behind the arm, but the gripper remains part of the swept envelope. A 12 kg payload includes adapters and service equipment. Compare cable behavior through the actual wrist rotations rather than assuming internal routing is maintenance-free. For a legacy MH installation, verify the delivered controller, software options and retained calibration.
Applications and Best-Fit Projects
Consider machine tending, part transfer and multipurpose work requiring six-axis orientation in a moderate workspace.
Process architecture and mechanical selection
Begin with the process, then select a robot. Payload, reach and axis count must be evaluated together with tool moments, inertia and the required approach direction. Include cable dress, fixtures and auxiliary axes in the simulation. Portfolio maxima are especially easy to misuse: the largest payload, longest reach and finest repeatability may belong to three different configurations. Require one exact model specification for the final design.
Controls and responsibility boundaries
Specify whether the supply includes an arm, controller, process package or complete accepted cell. Allocate responsibility for PLC interfaces, tooling, machine interlocks, programming, cycle qualification and operator training. These boundaries determine both installed cost and fault-resolution time. For an older controller generation, confirm supported software, spare parts and replacement procedures before evaluating a low purchase price.
Acceptance and lifecycle performance
Measure good output over representative operation, including changeover, process checks and recovery. Maximum motion speed does not establish production throughput. Check maintenance access and the effect of service on calibration. A robust comparison uses the same load, tooling, process quality target and support horizon for every candidate, rather than mixing robot-only quotations with complete cell proposals.
Price, Value and What the Quote Should Include
Request a quotation for the exact configuration described in the technical table. Separate the base equipment from tooling, software options, installation, commissioning, training and ongoing service. Ask the supplier to identify the delivered revision and acceptance obligations in writing. A low hardware price is not a saving if the project requires unbudgeted integration or unsupported accessories.
For the value assessment, compare the present workflow with a realistic proposed cycle. Include the time people still spend loading, replenishing, checking quality and recovering faults. Estimate savings only from changes the proposed system can actually deliver. Keep maintenance, changeover and support availability in the calculation, and use a representative pilot to replace optimistic assumptions with measured results.
Pros and Cons
Strengths
• 12 kg payload with 1,440 mm reach
• Tool routing passage
• Access-oriented arm geometry
Limits to Account For
• Services must suit routing limits
• Controller lifecycle needs confirmation
Commissioning and Acceptance Checklist
Check exact controller scope, tool inertia, through-hole routing, behind-arm clearance and representative loaded cycle recovery.
Write the required result, test conditions and pass/fail threshold before running acceptance. Include the least favorable normal load or part, a representative shift or operating sequence and the recovery cases that occur in the real workflow. Keep a record of the supplied hardware, software and settings so future maintenance can restore the same validated behavior.
Who Should Consider It
Consider machine tending, part transfer and multipurpose work requiring six-axis orientation in a moderate workspace. A versatile moderate-payload robot for compact handling and tending. Its arm geometry and through-hole tool routing are especially relevant when access and cable interference limit the cell.
Frequently Asked Questions
What is Yaskawa Motoman MH12 best suited to?
Consider machine tending, part transfer and multipurpose work requiring six-axis orientation in a moderate workspace.
Which technical specifications matter most for Yaskawa Motoman MH12?
The documented starting points are Axes: 6; Payload: 12 kg; Horizontal reach: 1,440 mm. Match those values to one supplied configuration; do not combine family endpoints or assume an optional package is included.
How should Yaskawa Motoman MH12 be integrated into a real workflow?
Begin with the process, then select a robot. Define the task boundaries, handoff signals and exception states before commissioning. Verify them with the actual tooling, carriers, fixtures or site data rather than a simplified demonstration.
What are the main limitations of Yaskawa Motoman MH12?
The main constraints are services must suit routing limits; controller lifecycle needs confirmation. The 50 mm routing passage is useful only if the chosen service bundle fits its bend and motion requirements. Compare the complete installed solution against the process requirement rather than relying on a single headline figure.
What does Yaskawa Motoman MH12 cost?
Request a configuration-specific quotation. A verified fixed public price for the complete package is not established here. The proposal should identify included hardware, required software, integration, training, service and any recurring charges so competing quotations cover the same scope.
Can Yaskawa Motoman MH12 operate without human involvement?
Do not infer unattended reliability from a successful demonstration. Define which task steps are automated, which still require operators and how the system reacts to missing inputs, obstruction or process faults. Release only the validated operating envelope.
What should be tested before accepting Yaskawa Motoman MH12?
Check exact controller scope, tool inertia, through-hole routing, behind-arm clearance and representative loaded cycle recovery. Record measurable acceptance criteria and retain the results for the delivered configuration.
How should buyers compare Yaskawa Motoman MH12 with alternatives?
Use the same task, quality target, operating conditions and support horizon for each proposal. Its arm geometry and through-hole tool routing are especially relevant when access and cable interference limit the cell. Compare total installed and operating cost, including recovery effort and changeover, rather than robot-only price.
Specifications and included options depend on the ordered model and revision. Confirm the final configuration, commercial terms and local support with the supplier.
