Techman TM14 Review: Specs, Price and Applications of the 14 kg Collaborative Robot
Updated: 2 days ago
The Techman TM14 is a 6-axis collaborative robot with a maximum payload of 14 kg, a reach of 1100 mm and ±0.1 mm repeatability, listed from USD 39,500. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict

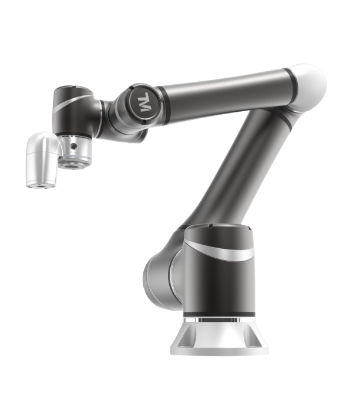

The Techman Robot TM14 is a 6-axis collaborative robot with a 14 kg payload, a 1100 mm reach and a repeatability of ±0.1 mm. Its built-in 5 MP auto-focus color camera lets it locate parts and carry out vision-guided handling, assembly and inspection tasks without a separate vision system. The arm weighs 33 kg, moves at up to 4 m/s and is protected to IP54, while the control box is rated IP32. It is programmed with TMflow and communicates over Ethernet, RS-232 and Modbus TCP/RTU, with digital and analog I/O on both the control box and the tool flange. It is listed from USD 39,500.
Techman TM14 at a Glance
Maximum payload: 14 kg
Reach: 1100 mm
Axes: 6
Repeatability: ±0.1 mm
Speed: 4 m/s
Weight: 33 kg
Controller: TM control box, programmed with TMflow
Price: from USD 39,500
Techman TM14 Technical Specifications
The table below lists the published specifications of the Techman TM14.
Specification | Techman TM14 |
Manufacturer | Techman Robot |
Model | TM14 |
Robot type | 6-axis collaborative robot |
Maximum payload | 14 kg |
Reach | 1100 mm |
Axes | 6 |
Repeatability | ±0.1 mm |
Speed | 4 m/s |
Controller | TM control box, programmed with TMflow |
Interfaces | RS-232, Ethernet, Modbus TCP/RTU, control box 16 digital inputs, 16 digital outputs, 2 analog inputs, 1 analog output, tool flange 4 digital inputs, 4 digital outputs, 1 analog input |
Certifications | ISO 10218-1, ISO/TS 15066, ISO 13849-1, CE |
Starting price | From USD 39,500 |
Detailed Technical Data
6 axes
Payload 14 kg
Reach 1100 mm
Repeatability ±0.1 mm
Max speed 4 m/s
Weight 33 kg
IP54 arm, IP32 control box
Built-in 5 MP auto-focus color camera
Design and Build Quality
The TM14 is a 6-axis collaborative robot made by Techman Robot. Published build data: weight 33 kg; IP54 arm, IP32 control box.
Programming and Software
Controller and Software
Published controller for the TM14: TM control box, programmed with TMflow. Techman robots are programmed in TMflow, a flowchart-based environment, and have a built-in vision system. Programming interfaces, software licences and simulation tools vary by package, so confirm what is included before ordering.
Industrial Communication
Published interfaces are RS-232, Ethernet, Modbus TCP/RTU, control box 16 digital inputs, 16 digital outputs, 2 analog inputs, 1 analog output and tool flange 4 digital inputs, 4 digital outputs, 1 analog input.
Techman TM14 Applications and Use Cases
Typical applications for the TM14 are vision-guided pick and place, inspection, palletizing and machine tending.
Vision-guided pick and place
The TM14 is used for vision-guided pick and place within its 14 kg payload and 1100 mm reach.
Inspection
The TM14 presents parts to cameras and gauges, or carries the sensor to the part.
Palletizing
The TM14 stacks cases, bags and crates onto pallets, lifting up to 14 kg including the gripper.
Techman TM14 Price and Value
The Techman TM14 is listed from USD 39,500 on All Things Cobots. The controller, end effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
14 kg maximum payload with a 1100 mm reach
Speed: 4 m/s
Collaborative design for work near people, subject to a risk assessment
Wide choice of communication interfaces
Built-in vision system
Cons
Repeatability of ±0.1 mm is wider than on smaller precision robots
The 14 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who Should Buy the Techman TM14?
The Techman TM14 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
See the full Techman TM14 product listing on All Things Cobots.
Techman TM14 FAQ
How much does the Techman TM14 cost?
The Techman TM14 is listed from USD 39,500 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the Techman TM14?
The TM14 has a maximum payload of 14 kg and a reach of 1100 mm.
How accurate is the Techman TM14?
Its published repeatability is ±0.1 mm.
How many axes does the Techman TM14 have?
The TM14 has 6 axes.
How is the Techman TM14 programmed?
Techman robots are programmed in TMflow, a flowchart-based environment, and have a built-in vision system.
Which controller does the Techman TM14 use?
Published controller: TM control box, programmed with TMflow.
How much does the Techman TM14 weigh?
Published weight 33 kg.
Is the Techman TM14 a collaborative robot?
Yes. The TM14 is a collaborative robot. Every collaborative application still needs its own risk assessment.
What is the Techman TM14 used for?
Typical applications are vision-guided pick and place, inspection, palletizing and machine tending.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
