Siemens SINAMICS G115D Distributed Conveyor Drives Review: Specs, Price and Applications
Updated: 4 days ago
SINAMICS G115D is a distributed drive system focused on horizontal conveying. Wall-mounted and motor-mounted configurations place electronics near the mechanism, with matched motor/gearmotor choices. This application focus differs from a generic cabinet drive or an established vertical lifting-axis solution.
Quick Verdict
Assess G115D for intralogistics, baggage and production conveyors when a matched distributed configuration reduces installation effort. Compare the full motor, gearbox, converter and connector scope. Local placement still requires engineered power, control and service access.
Siemens SINAMICS G115D Distributed Conveyor Drives at a Glance
Specification | Details |
Main application | Horizontal conveyor motion |

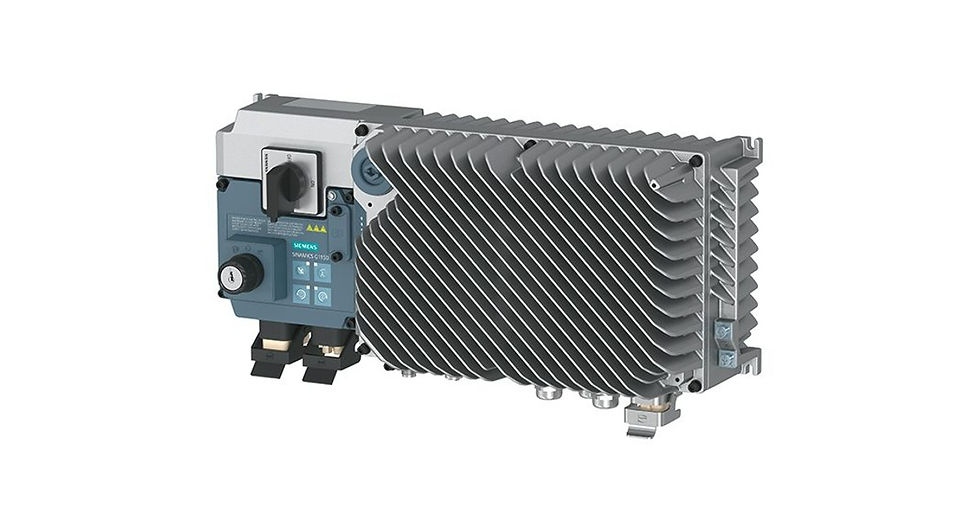

Mounting | Wall-mounted or motor-mounted versions |
Launch power ranges | 0.37–7.5 kW wall-mounted; 0.37–4 kW motor-mounted |
Current environment overview | IP65/66 by variant; −30 to 55 °C, derating above 40 °C |
Engineering | TIA / Startdrive and supported service tools |
System scope | Exact motor/gearmotor and drive configuration must be quoted |
Price | Request a quote for the complete selected assembly |
Design and Engineering Assessment
Size conveyor torque using friction, product load, acceleration and gearing. Unloaded belt speed alone does not define the duty. A horizontal-conveyor selection should not be transferred into a hoist without a separate system assessment.
Distributed electronics reduce cabinet concentration and can shorten motor wiring. They move heat, connectors and service work onto the conveyor. Include accessibility and module-replacement procedure in the layout.
Environmental extremes and ingress ratings depend on the configuration. Confirm the actual converter, motor, gearbox and installed connectors; do not assume every version can combine all headline limits without derating.
Define the Supplied Assembly
Specify gearbox ratio, shaft, motor mounting, converter location and connections together. A converter-only price cannot be compared directly with a complete geared-motor system.
For motor mounting, assess local motor/process temperature. For wall mounting, confirm motor cable routing and service clearance.
Conveyor Commissioning
Coordinate speed profiles with upstream and downstream equipment. Define the process sensing and controller response to stalled or blocked product flow.
Test warm loaded duty, restart with material present and communication or drive faults. Save validated parameters and the compatible module identity for replacement.
Applications and Selection
Horizontal logistics and industrial production conveyors with configured distributed drives.
For Siemens SINAMICS G115D Distributed Conveyor Drives, define the actual machine duty before selecting an ordering configuration. Include the required operating point, available installation space, environment and control interfaces. The specification table describes the product or family; the surrounding machine determines which of those features matters for the intended job.
Price and Value
Price: Request a quote for the exact configuration. Compare the product, compatible control equipment, required mechanical parts, cabling and commissioning as one installed system. A component price alone does not represent the cost of a working automation axis.
Evaluate an alternative against the same duty and acceptance criteria. Match the continuous operating requirement first, then compare transient capability, feedback, mechanical fit and support. This avoids choosing between superficially similar products whose ratings describe different operating conditions.
Pros and Cons
Advantages
Distributed conveyor-specific architecture
Two mounting approaches
Integrated engineering and service ecosystem
Limitations
Vertical duty cannot be inferred
Environment and supply scope vary
Local thermal and service design required
Who Should Consider Siemens SINAMICS G115D Distributed Conveyor Drives?
Consider Siemens SINAMICS G115D Distributed Conveyor Drives for horizontal logistics and industrial production conveyors with configured distributed drives. Establish the required operating point and installation interfaces before choosing the configuration, and use a representative loaded cycle as the acceptance basis.
Siemens SINAMICS G115D Distributed Conveyor Drives FAQ
What is the main intended motion?
Horizontal conveying in logistics and production machinery.
Are mounting-version power ranges identical?
No. The published launch ranges differ; verify the selected configuration.
Does a quotation always include the gearmotor?
No. Confirm the exact supplied system components.
Is 55 °C always available at full duty?
No. The current overview identifies derating above 40 °C.
Does IP66 prove hygienic design?
No. Ingress protection does not establish every cleaning or food-contact requirement.
Can it automatically be used as a hoist drive?
No. Horizontal conveyor scope does not establish a lifting solution.
What should a loaded test cover?
Starting, acceleration, flow coordination, blocked material and recovery.
What supports module replacement?
Compatible hardware identity and a validated backup/restoration procedure.
Prices are indicative and may change. Confirm the final configuration, commercial terms and delivery schedule before ordering.
