SCHUNK JGP-P Pneumatic Parallel Gripper Review: Specs, Price and Applications

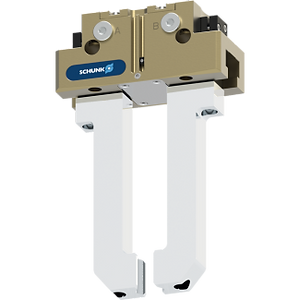

The SCHUNK JGP-P is a pneumatic two-finger parallel gripper that SCHUNK positions for a strong cost-to-performance ratio. It uses a robust T-slot guidance to carry the jaws and is offered in multiple sizes.
Ten sensor systems are available for stroke-position and workpiece monitoring, the gripper can be mounted from two sides in three screwing directions, and air can be supplied through hose-free direct connections or standard fittings.
Quick Verdict
A dependable everyday parallel gripper for standard handling tasks. It suits integrators who want SCHUNK quality and wide sensor options at a lower price point than premium guidance systems.
SCHUNK JGP-P Pneumatic Parallel Gripper at a Glance
Specification | Details |
Gripper type | Pneumatic 2-finger parallel gripper |
Guidance | T-slot guidance |
Sizes | Multiple sizes |
Sensors | Ten sensor systems for stroke and workpiece monitoring |
Mounting | Two sides, three screwing directions |
Air supply | Hose-free direct connection or fittings |
Lubrication | Food-compliant lubricants as standard |
Price | Request a quote; positioned for cost efficiency |
Design and Operating Principle
T-slot guidance is a simple, robust way to guide jaws: the base jaw runs in a slot machined into the housing, providing solid support at a lower manufacturing cost than roller or multi-tooth guides. For many standard handling tasks this precision is more than sufficient.
Sensor flexibility is a strength. With up to ten sensor systems, the JGP-P can report open and closed positions or measure stroke, which allows good/bad sorting by part dimension, as the gripper closes to a different position on an out-of-tolerance part.
Hose-free direct connections let air pass through the mounting plate, reducing hoses that can snag on the robot wrist.
Integration and Selection
Size the gripper from part mass, finger length and accelerations, and check the permissible finger moments. Choose the sensor type according to whether simple end-position detection or analog stroke measurement is needed.
Use the hose-free connection where a custom adapter plate is designed, and keep fittings for quick prototype setups.
Industry Applications
Industry | Typical use |
Machine tending | Loading and unloading machined parts |
Assembly | Transferring components between stations |
Quality control | Sorting parts by measured gripping position |
Packaging | Pick-and-place of rigid products |
Functional Uses
Standard pick-and-place handling
Part-dimension checking via jaw position
Hose-free mounting on robot flanges
Monitoring part presence
Pros and Cons
Advantages
Strong price-to-performance ratio
Ten sensor options
Flexible mounting
Hose-free air supply option
Limitations
T-slot guidance is less rigid than premium guides
Not intended for very long fingers
Not fully hygienic-design compliant
Who Should Consider the SCHUNK JGP-P Pneumatic Parallel Gripper?
The JGP-P suits integrators and machine builders who need a reliable, economical pneumatic gripper for standard handling and sorting tasks.
Price and Availability
Price: Request a quote. SCHUNK prices the JGP-P by size, options and quantity, so the final figure depends on the exact configuration. Budget for the complete tooling package, including fingers or adapters, mounting, air or electrical connections and commissioning time, rather than the module alone.
Further Reading
SCHUNK JGP-P Pneumatic Parallel Gripper FAQ
What is the SCHUNK JGP-P?
A pneumatic two-finger parallel gripper with T-slot guidance, designed for a strong cost-to-performance ratio.
How many sensor options are there?
Ten sensor systems for stroke-position and workpiece monitoring.
How can the JGP-P be mounted?
On two sides in three screwing directions.
Can air be supplied without hoses?
Yes. Hose-free direct connections are available, as well as standard fittings.
Can it sort good and bad parts?
Yes. With stroke sensing, parts outside dimensional tolerance can be detected by the jaw position.
How much does the JGP-P cost?
Request a quote from SCHUNK; the series is positioned as a cost-efficient option.
