SATA Round 360° Nozzle Extension Review: Specs, Price and Applications

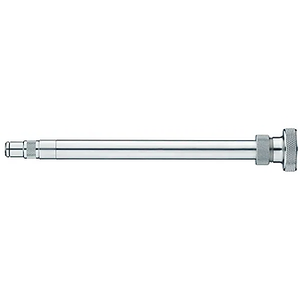

The SATA Round 360° spray nozzle extension, model 154518, is a 20 cm internal-mixing extension that sprays all around for the SATAjet 1000 A RP robot gun. Other sizes and lengths are available.
It suits hollow body coatings and narrow or deep-seated areas such as tube interiors.
Quick Verdict
A clever way to coat the inside of tubes and cavities in one pass.
SATA Round 360° Nozzle Extension at a Glance
Specification | Details |
Product type | Nozzle extension |
Model | 154518 |
Spray | 360° round |
Length | 20 cm; others on request |
Mixing | Internal |
Compatibility | SATAjet 1000 A RP |
Price | Request a quote |
Design and Operating Principle
Robotic painting depends on a spray gun that produces a stable, repeatable fan and atomisation, switches precisely on robot signals and can be cleaned or serviced quickly. Transfer efficiency, the share of paint that lands on the part, drives material cost and overspray.
A 360° pattern coats all inner walls as the robot draws the extension through a cavity.
Integration and Selection
Mount the gun on the robot with the appropriate holder, connect atomising air, control air and material supply, and program trigger timing with path speed.
Test spray patterns and film thickness on sample parts before production.
Industry Applications
Industry | Typical use |
Automotive | Sill and frame cavities |
Pipes | Internal coating |
Furniture | Tubular frames |
Machinery | Bores |
Functional Uses
Tube interior coating
Hollow body coating
Pros and Cons
Advantages
360° coverage
Custom lengths
Limitations
Only for 1000 A RP
Who Should Consider the SATA Round 360° Nozzle Extension?
The SATA Round 360° Nozzle Extension suits automated painting and coating cells.
Price and Availability
Price: Request a quote. SATA prices the 154518 by configuration. Budget for nozzles, air caps, material supply, pressure regulation, mounting and paint system integration.
Further Reading
SATA Round 360° Nozzle Extension FAQ
What is the 154518?
The SATA Round 360° spray nozzle extension, model 154518, is a 20 cm internal-mixing extension that sprays all around for the SATAjet 1000 A RP robot gun.
What applications suit it?
Tube interior coating, Hollow body coating.
Who makes it?
SATA.
How much does it cost?
Request a quote from SATA.
