REIKU PAFTB-70 Trumpet Spring Holder Review: Specs, Price and Applications

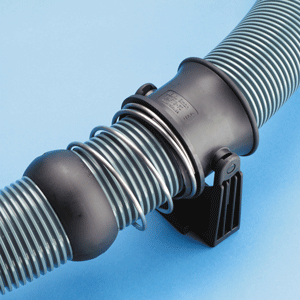

REIKU PAFTB-70 is a trumpet spring holder for rotary fork cable-dress assemblies, specified by A3 as a spring support component for 70 mm conduit systems.
Quick Verdict
This purpose-built REIKU accessory serves a specific conduit-routing role and is most useful when its compatible conduit and support arrangement match the motion of the robot.
Specifications at a Glance
Specification | Details |
Verified specifications | Model PAFTB-70; NW70 mm spring support |
Intended function | Supporting the spring assembly in articulated conduit routing |
Price | Request a quote |
Design and Operating Principle
REIKU PAFTB-70 is a trumpet spring holder for rotary fork cable-dress assemblies, specified by A3 as a spring support component for 70 mm conduit systems.
Robot dress systems carry protective conduit and the cables or hoses inside it through repetitive multi-axis motion. A cable-management component can guide movement, support a hose bundle or relieve stress at a termination. Its benefit is specific to the installed geometry rather than an intrinsic increase in robot payload or process accuracy.
Integration and Selection
Model the robot's entire joint envelope, including wrist orientation, extreme reach positions and retraction path. Verify the conduit diameter and connection to nearby clamps, jaws or spring holders. Allow enough space for cable motion without trapping the bundle against guards or tool mounts.
During commissioning, move the robot through every program limit and emergency return path, then inspect for twisting, snagging, rubbing and unsupported connector weight. Select cable and hose types independently for required bending and torsional durability.
Industry Applications
Specification | Details |
Automotive automation | Industrial robotic cable routing |
Fabrication and welding | Dress and umbilical support |
Manufacturing cells | Protected EOAT cable termination |
Functional Uses
Supporting the spring assembly in articulated conduit routing
Robot cable and hose bundle management
Motion-compatible tooling infrastructure
Pros and Cons
Advantages
A defined robotic cable-dress function
Designed for the manufacturer's conduit-management family
Can reduce routing or termination problems when correctly installed
Limitations
No spring-force rating or life figure on A3
No general-purpose specification for all robot brands
Exact fit and travel must be verified
Who Should Consider This Product?
Robot integrators and plant maintenance teams replacing or engineering conduit supports where repeated motion requires a compatible, application-specific dress component.
Price and Availability
Price: Request a quote for the exact component; the A3 entry does not publish list pricing.
Frequently Asked Questions
What is REIKU PAFTB-70 Trumpet Spring Holder?
REIKU PAFTB-70 is a trumpet spring holder for rotary fork cable-dress assemblies, specified by A3 as a spring support component for 70 mm conduit systems.
What specifications does A3 give?
Model PAFTB-70; NW70 mm spring support.
Where is the part used?
Supporting the spring assembly in articulated conduit routing.
What are its drawbacks?
No spring-force rating or life figure on A3; No general-purpose specification for all robot brands; Exact fit and travel must be verified.
How much does it cost?
Request a quotation for the correct REIKU model.
