Piab COAX Di16-2 Dust-Proof Cartridge Review: Specs, Price and Applications

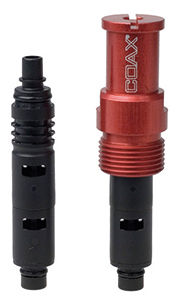

The Piab COAX Di16-2 is a MINI-size, two-stage vacuum ejector cartridge without flap valves, designed so that dust and dirt pass freely through the nozzles. It reaches vacuum levels down to 21 inHg at a feed pressure of 87 psi.
It is designed for Piab's VGS3010 vacuum gripper system, which combines a suction cup and multi-stage air-driven pump in one unit, and targets dusty environments such as packaging with corrugated dust, where filters would clog.
Quick Verdict
A pragmatic fix for vacuum grippers that clog on cardboard dust. Removing flap valves lets debris pass through instead of stopping the line.
Piab COAX Di16-2 Dust-Proof Cartridge at a Glance
Specification | Details |
Product type | COAX vacuum ejector cartridge |
Size | MINI |
Stages | Two, without flap valves |
Vacuum level | Down to 21 inHg |
Feed pressure | 87 psi |
Dust handling | Dust passes freely through nozzles |
Compatibility | VGS3010 vacuum gripper system |
Price | Request a quote |
Design and Operating Principle
Multi-stage ejectors usually include flap valves between stages, which open and close as vacuum builds. In dusty environments, particles lodge in these valves and degrade performance. The Di16-2 eliminates them, so dust flows straight through.
COAX technology integrates multi-stage pump internals into a compact cartridge, making the ejector small, efficient and quiet. The cartridge format allows easy replacement within modular systems.
Combining humidity and dust can create sticky deposits; the free-flow nozzle design reduces the risk of clogging in such conditions.
Integration and Selection
Fit the Di16-2 in VGS3010 grippers used on corrugated cartons and other dusty products. Supply 87 psi feed pressure for rated vacuum.
Remove or avoid fine filters that would clog, relying instead on the cartridge's dust tolerance.
Industry Applications
Industry | Typical use |
Packaging | Handling corrugated cartons |
Logistics | Palletizing dusty boxes |
Paper products | Handling paper-based goods |
Building materials | Handling dusty bags and boards |
Functional Uses
Dust-tolerant vacuum generation
Decentral vacuum on VGS3010
Reduced downtime from clogging
Corrugated carton handling
Pros and Cons
Advantages
No flap valves to clog
21 inHg vacuum
Compact MINI size
Easy cartridge replacement
Limitations
Designed for VGS3010
Requires compressed air
Two stages limit flow versus larger cartridges
Who Should Consider the Piab COAX Di16-2 Dust-Proof Cartridge?
The Di16-2 suits packaging lines with corrugated dust that clogs vacuum systems.
Price and Availability
Price: Request a quote. Piab prices the Di16-2 cartridge by configuration, options and quantity. Budget for the complete solution, including mounting, vacuum or air supply, valves, sensors and commissioning, rather than the component alone.
