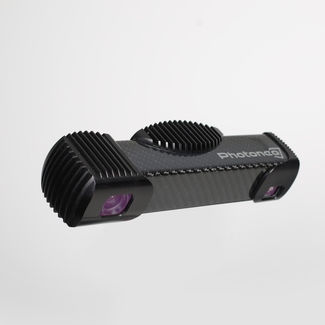

Photoneo MotionCam-3D Mono Camera Review
Updated: 7 days ago
Photoneo MotionCam-3D is a 3D camera platform for moving scenes. This source-based review concerns the original non-color catalog entry and separates it from MotionCam-3D Color and newer enhanced modes. Price: Request a quote.
The camera should be selected as part of an imaging system rather than evaluated from one headline specification. The useful result is an image that reveals the required feature at the right time, followed by a reliable inspection or measurement decision. This review considers the documented acquisition package, optical implications and practical purchasing scope for MotionCam-3D Mono.
Quick Verdict
The original configuration merits evaluation when useful 3D data must be acquired during motion. The catalog describes Parallel Structured Light and distinguishes a 0.9 MP dynamic point cloud from a 2 MP static mode. Later manufacturer material describes enhanced 2 MP scanning in motion. Those generations and modes should remain explicit rather than being combined into one undocumented camera point.
MotionCam-3D Mono Technical Specifications
Specification | Value or configuration |
Product | Photoneo MotionCam-3D Mono |
Image format | Original 0.9 MP dynamic or 2 MP static 3D cloud |
Acquisition | Parallel Structured Light Snapshot Acquisition |
Interface | Model-specific Ethernet and PoE installation |
Capture rate | Mode and generation-specific; point throughput is separate |
Review scope | Original non-color MotionCam-3D catalog configuration |
Acquisition | Parallel Structured Light |
Catalog dynamic image | 0.9 MP 3D point cloud |
Catalog static mode | 2 MP; separate mode |
Range statement | 36 cm to 3 m across catalog family scope |
Install scope | Catalog IP65 and PoE; selected assembly applies |
Price | Request a quote |
Design and Optical Requirements
Choose the physical model and working volume around the object size, smallest relevant geometry and occlusions. Catalog range across a family is not a guarantee that every model covers every distance with identical precision. Test actual surfaces, edges, reflectivity and ambient light. Point-cloud density does not establish independently verified dimensional accuracy.
Acquisition Speed and Integration
The catalog describes snapshot acquisition for dynamic scenes and a high object-speed headline. That is not a promise that every surface, exposure and geometry remains measurable at the headline speed. Test actual conveyor or robot motion, acquisition timing, usable points and complete host processing. Associate each cloud with the correct object and controller action.
Programming and Image Processing
Preserve the selected 3D mode, acquisition controls, host tools and coordinate calibration together. Validate filtering and registration against independent geometry rather than optimizing only a visually clean cloud. Any robotic guidance output needs an accepted transform and time association. Confirm supported software and firmware for the original mono generation.
Image Data and Host Capacity
Budget point-cloud coordinates, confidence or other selected attributes at the actual acquisition rate. A 3D point is not a single 8-bit grayscale pixel. Include filtering, registration, downstream processing and diagnostic storage. Separate point throughput from complete useful-cloud and inspection cadence, and keep mono geometry distinct from color image payload.
MotionCam-3D Mono Applications and Use Cases
Moving-object inspection, geometry analysis or robotic guidance can merit evaluation after the actual 3D requirement is defined. Include difficult reflective surfaces, occluded features and normal object variation. Guidance needs validated coordinate transforms and timing; a dense cloud alone is insufficient. Do not add color-based rust or label inspection capability to this non-color review.
Building a Useful Acceptance Trial
Prepare representative parts or scenes that include the smallest required feature, normal production variation and realistic faults. Confirm the field of view and exposure before tuning the inspection. Record wrong accepts, wrong rejects, missing frames and the complete trigger-to-decision timing. A trial should also show what happens when the expected image is absent or unusable. This connects camera selection to the station's actual acceptance requirement rather than relying on a sharp reference picture.
MotionCam-3D Mono Price and Value
Price: Request a quote. Ask for the complete MotionCam-3D Mono ordering code and an itemized scope covering the camera, suitable optics, receiving hardware, cables, power and commissioning. Compare quotations for the same image format, acquisition mode and integration scope. The cost of a camera component is different from the cost of a working inspection station. Evaluate any financial return with the plant's actual labor, defect, rework and maintenance data; no universal payback period follows from these specifications.
Comparison and Selection
Compare the original mono configuration with MotionCam-3D Color, an enhanced generation and a static scanner using the same accepted geometric result. Color adds different observable information. A static method may suit a stopped scene, while a dynamic method can change station timing. Compare delivered useful points and complete decisions rather than mixing cloud resolution with RGB pixel counts.
Ordering, Environment and Lifecycle
Confirm exact model, generation, firmware, power, calibration and supported host tools. Apply IP65 only to the documented installed arrangement. Preserve accepted coordinate calibration, acquisition settings and reference objects together. Validate restart and replacement. Obtain current lifecycle and replacement guidance for the original configuration rather than assuming a newer product headline describes the installed device.
Pros and Cons
Pros
Dynamic-scene 3D acquisition supports a defined moving-object trial.
Separate static and dynamic modes allow explicit selection.
Configured geometry and calibration support reproducible integration.
Cons
Original and enhanced generation specifications must remain separate.
Point density and motion headlines do not establish universal accuracy.
Occlusion, surfaces, calibration and controller timing remain critical.
Who Should Buy MotionCam-3D Mono?
Shortlist MotionCam-3D Mono when its documented sensor, interface and acquisition mode match the imaging task and the team can demonstrate the complete host pipeline. Use the sample trial to establish whether the relevant features remain distinguishable under the expected lighting, presentation and motion. Before purchase, settle the optical configuration, ordering variants and support requirements. The best choice is the configuration that satisfies the acceptance criteria with a maintainable system architecture.
MotionCam-3D Mono FAQ
Is this MotionCam-3D Color?
No. This review covers the original non-color catalog entry.
What technology is identified?
Parallel Structured Light.
Which original dynamic image is listed?
A 0.9 MP 3D point cloud.
Is the 2 MP static point the same dynamic mode?
No. The catalog separates them; later enhanced generations have different scope.
Does the range apply equally to every model?
No. Select the physical model and accepted working volume.
Does point density prove dimensional accuracy?
No. Validate actual geometry with independent references.
What is the price?
Price: Request a quote for the exact generation and integration.
What should acceptance include?
Useful moving-scene geometry, calibration, missing data and controller association.
Price: Request a quote. Final configuration, pricing, availability and support terms depend on the supplier's current quotation.
