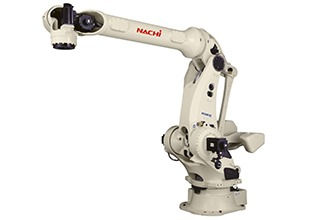

Nachi MC35 Review: Specs, Price and Applications of the 35 kg Industrial Robot
Updated: 2 days ago
The Nachi MC35 is a 6-axis industrial robot with a maximum payload of 35 kg, a reach of 2050 mm and ±0.07 mm repeatability, listed from USD 37,000. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The Nachi MC35 is a 6-axis industrial robot with a 35 kg payload, a reach of 2050 mm and a position repeatability of ±0.07 mm. It is a medium-payload arm for material handling and machine tending, and the forearm carries up to 15 kg of additional equipment. The arm weighs 640 kg and is designed for floor mounting. It is listed from USD 37,000.
Nachi MC35 at a Glance
Maximum payload: 35 kg
Reach: 2050 mm
Axes: 6
Repeatability: ±0.07 mm
Weight: 640 kg
Price: from USD 37,000
Nachi MC35 Technical Specifications
The table below lists the published specifications of the Nachi MC35.
Specification | Nachi MC35 |
Manufacturer | Nachi Robotics |
Model | MC35 |
Robot type | 6-axis industrial robot |
Maximum payload | 35 kg |
Reach | 2050 mm |
Axes | 6 |
Repeatability | ±0.07 mm |
Interfaces | DeviceNet, CC-Link, CC-Link IE Field, digital I/O up to 32 in / 32 out |
Certifications | CE, CSA/UL, PL e Category 4 safety sequence |
Starting price | From USD 37,000 |
Detailed Technical Data
6 axes
Max. payload 35 kg
Reach 2050 mm
Repeatability ±0.07 mm
Mass 640 kg
Mounting floor
Design and Build Quality
The MC35 belongs to the Nachi MC series. Published build data: mass 640 kg; mounting floor.
Programming and Software
Teach Pendant and FD on Desk
The MC35 runs on a Nachi robot controller and is programmed from the Nachi teach pendant. Nachi's FD on Desk software is available for offline programming and simulation.
Industrial Communication
Published interfaces are DeviceNet, CC-Link, CC-Link IE Field and digital I/O up to 32 in / 32 out.
Nachi MC35 Applications and Use Cases
Typical applications for the MC35 are material handling, machine tending, assembly, packaging, inspection and dispensing.
Material handling
A 35 kg maximum payload and a 2050 mm reach let the MC35 move parts between stations, fixtures and conveyors.
Machine tending
The MC35 loads and unloads machine tools, presses and moulding machines within its 2050 mm reach.
Assembly
Repeatability of ±0.07 mm supports fitting, inserting and fastening parts in assembly cells.
Nachi MC35 Price and Value
The Nachi MC35 is listed from USD 37,000 on All Things Cobots. The controller, end effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
35 kg maximum payload with a 2050 mm reach
±0.07 mm repeatability
Wide choice of industrial fieldbus interfaces
Cons
Needs safety fencing or equivalent safeguarding
The 35 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who Should Buy the Nachi MC35?
The Nachi MC35 fits manufacturers that need an industrial robot of this size for handling, machine tending and assembly.
See the full Nachi MC35 product listing on All Things Cobots.
Nachi MC35 FAQ
How much does the Nachi MC35 cost?
The Nachi MC35 is listed from USD 37,000 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the Nachi MC35?
The MC35 has a maximum payload of 35 kg and a reach of 2050 mm.
How accurate is the Nachi MC35?
Its published repeatability is ±0.07 mm.
How many axes does the Nachi MC35 have?
The MC35 has 6 axes.
How is the Nachi MC35 programmed?
It is programmed from the Nachi teach pendant, and FD on Desk is available for offline programming and simulation.
How much does the Nachi MC35 weigh?
Published mass 640 kg.
How can the Nachi MC35 be mounted?
Published installation options: floor.
What is the Nachi MC35 used for?
Typical applications are material handling, machine tending, assembly, packaging, inspection and dispensing.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
