Mech-Eye PRO M Review: Specs and Uses of the Industrial 3D Camera
Updated: 7 days ago
The Mech-Eye PRO M is an industrial 3D camera from Mech-Mind with a working distance of 1000 to 2000 mm, a resolution of 1920 × 1200 and an accuracy of 0.2 mm at 2 m. The manufacturer does not publish a price. This review covers its specifications, design and uses.
Quick Verdict
The PRO M is the medium-range model of the PRO line. It works from one to two metres and covers a field of up to 1.5 m across, with an accuracy of 0.2 mm at 2 m, which makes it a general-purpose camera for larger bins and medium workpieces. It connects over Gigabit Ethernet and captures a scene in 0.3 to 0.6 s. The maker's comparison table does not state a protection rating for this model.
Mech-Eye PRO M at a Glance
Working distance: 1000 to 2000 mm
Resolution: 1920 × 1200
Accuracy: 0.2 mm at 2 m
Capture time: 0.3 to 0.6 s
Weight: 1.9 kg
Price: on request
Mech-Eye PRO M Technical Specifications
The table below lists the published specifications of the Mech-Eye PRO M.
Specification | Mech-Eye PRO M |
Manufacturer | Mech-Mind Robotics |
Model | PRO M-GL |
Working distance | 1000 to 2000 mm |
Field of view, near | 800 × 450 mm at 1.0 m |
Field of view, far | 1500 × 890 mm at 2.0 m |
Resolution | 1920 × 1200 |
Repeatability in Z | 0.2 mm at 2 m |
Accuracy, VDI/VDE 2634 | 0.2 mm at 2 m |
Capture time | 0.3 to 0.6 s |
Baseline | 270 mm |
Dimensions | 353 × 57 × 100 mm |
Weight | 1.9 kg |
Interface | Gigabit Ethernet |
Design and Build Quality

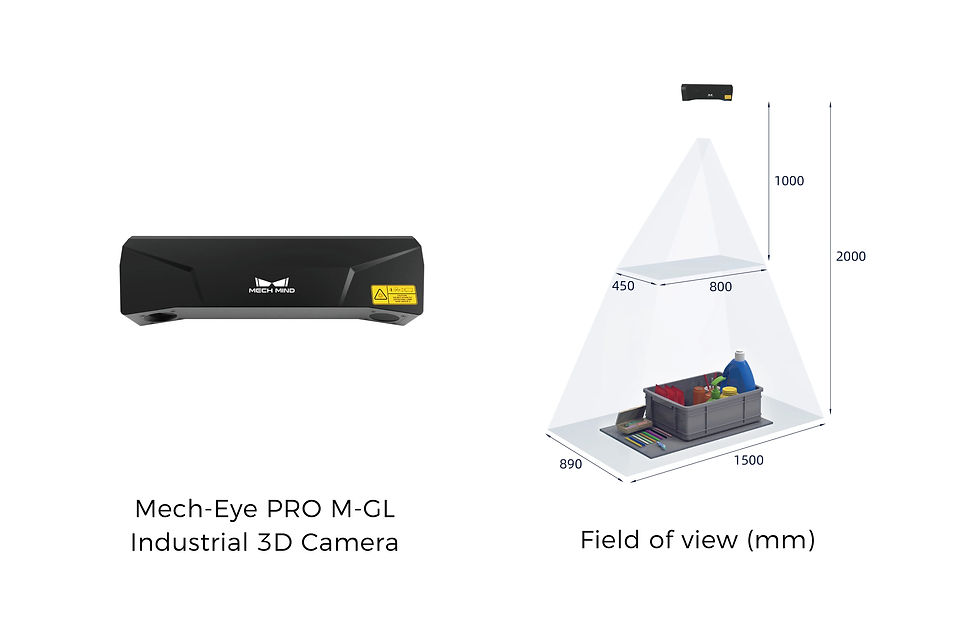

The housing measures 353 × 57 × 100 mm and weighs 1.9 kg. The baseline, the distance between projector and sensor, is 270 mm; a longer baseline improves depth accuracy at distance and makes the camera longer. Within its working range the field of view grows from 800 × 450 mm at 1.0 m to 1500 × 890 mm at 2.0 m. Accuracy is stated according to the VDI/VDE 2634 guideline, a recognized method for optical 3D measuring systems, which makes the figure comparable with other makers that use the same guideline.
Software and Integration
Interface
The camera connects over Gigabit Ethernet.
Component Approach
Mech-Mind sells its cameras as standardized components that robot makers and integrators build into their own systems, alongside its vision and AI software.
Mech-Eye PRO M Uses
The table of specifications points to the following uses.
Bin Picking of Medium Parts
The larger field of view covers bigger containers than the PRO S.
Machine Tending
Mounted above a cell, the camera locates workpieces across a wide area.
Locating and Assembly
An accuracy of 0.2 mm at 2 m is sufficient for placing medium-size parts.
Mech-Eye PRO M Price and Value
Mech-Mind does not publish a price for the Mech-Eye PRO M; it is available from the manufacturer or its partners on request.
For the company behind the product, read the Mech-Mind Robotics Company Profile: Products, Market Position, Leadership and Stock.
Pros and Cons
Pros
Accuracy of 0.2 mm at 2 m
Capture in 0.3 to 0.6 s
Accuracy stated to VDI/VDE 2634
Gigabit Ethernet interface
Cons
Fixed working range of 1000 to 2000 mm
No protection rating stated in the maker's comparison table
Structured-light capture needs a static scene
No published price
Who Should Buy the Mech-Eye PRO M?
The Mech-Eye PRO M fits integrators who need one camera to cover a container or work area up to about 1.5 m wide.
Mech-Eye PRO M FAQ
How much does the Mech-Eye PRO M cost?
Mech-Mind does not publish a price; it is available on request.
What is the working distance of the Mech-Eye PRO M?
1000 to 2000 mm.
How accurate is the Mech-Eye PRO M?
Its accuracy is 0.2 mm at 2 m according to VDI/VDE 2634, with a repeatability in Z of 0.2 mm at 2 m.
What is the field of view of the Mech-Eye PRO M?
From 800 × 450 mm at 1.0 m to 1500 × 890 mm at 2.0 m.
How fast does the Mech-Eye PRO M capture?
In 0.3 to 0.6 s.
How big and heavy is the Mech-Eye PRO M?
353 × 57 × 100 mm and 1.9 kg.
What interface does the Mech-Eye PRO M use?
Gigabit Ethernet.
What is the Mech-Eye PRO M used for?
bin picking of medium parts, machine tending, locating and assembly.
Specifications are based on manufacturer information and may change.
