Kassow Robots KR1410 Review: Specs, Price and Applications of the 10 kg Collaborative Robot
Updated: 2 days ago

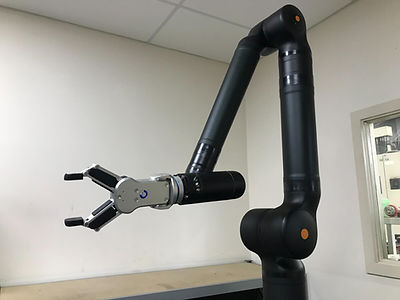

The Kassow Robots KR1410 is a 7-axis collaborative robot with a maximum payload of 10 kg, a reach of 1400 mm and ±0.03 mm repeatability, listed from USD 43,900. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The Kassow Robots KR1410 is a 7-axis collaborative robot with a payload of 10 kg and a reach of 1400 mm, repeatable to ±0.03 mm. Joint speeds reach 225 deg/s, and the seventh axis lets the arm reach around obstacles and work in confined spaces. The arm mounts on a 160 × 160 mm footprint and is rated IP54. Typical uses include machine tending, palletizing, dispensing and material handling. It is listed from USD 43,900.
Kassow Robots KR1410 at a Glance
Maximum payload: 10 kg
Reach: 1400 mm
Axes: 7
Repeatability: ±0.03 mm
Speed: up to 225 deg/s
Price: from USD 43,900
Kassow Robots KR1410 Technical Specifications
The table below lists the published specifications of the Kassow Robots KR1410.
Specification | Kassow Robots KR1410 |
Manufacturer | Kassow Robots |
Model | KR1410 |
Robot type | 7-axis collaborative robot |
Maximum payload | 10 kg |
Reach | 1400 mm |
Axes | 7 |
Repeatability | ±0.03 mm |
Speed | Up to 225 deg/s |
Interfaces | Modbus, Profinet, ROS1/ROS2, KORD API, TCP/IP, UDP, 16 digital inputs, 8 digital outputs, 4 relay outputs, 2 analogue inputs and 2 analogue outputs (0–10 V and 4–20 mA), two M8 8-pole tool connectors (24 V/3 A), RS485 at the tool flange |
Starting price | From USD 43,900 |
Detailed Technical Data
Axes: 7. Payload: 10 kg. Reach: 1400 mm. Repeatability: ±0.03 mm. Joint speed: up to 225 deg/s. Joint ranges: J2 and J4 -70°/+180°
J1, J3, J5, J6 and J7 ±360°. Footprint: 160 × 160 mm. Protection class: IP54. Operating temperature: 0–45 °C. Sound level: <65 dB. Body material: aluminium. Power consumption: 400–1200 W. Supply: 100–120 or 200–240 VAC, 50/60 Hz, 16 A
Design and Build Quality
The KR1410 is a 7-axis collaborative robot made by Kassow Robots. Published build data: J1, J3, J5, J6 and J7 ±360°. Footprint: 160 × 160 mm. Protection class: IP54. Operating temperature: 0–45 °C. Sound level: <65 dB. Body material: aluminium. Power consumption: 400–1200 W. Supply: 100–120 or 200–240 VAC, 50/60 Hz, 16 A.
Programming and Software
Controller and Software
Programming interfaces, software licences and simulation tools vary by package, so confirm what is included before ordering.
Industrial Communication
Published interfaces are Modbus, Profinet, ROS1/ROS2, KORD API, TCP/IP, UDP, 16 digital inputs, 8 digital outputs, 4 relay outputs, 2 analogue inputs and 2 analogue outputs (0–10 V and 4–20 mA), two M8 8-pole tool connectors (24 V/3 A) and RS485 at the tool flange.
Kassow Robots KR1410 Applications and Use Cases
Typical applications for the KR1410 are machine tending, dispensing, palletizing, inspection, welding and constrained workspaces.
Machine tending
The KR1410 loads and unloads machine tools, presses and moulding machines within its 1400 mm reach.
Dispensing
The KR1410 follows sealing and gluing paths at a controlled speed.
Palletizing
The KR1410 stacks cases, bags and crates onto pallets, lifting up to 10 kg including the gripper.
Kassow Robots KR1410 Price and Value
The Kassow Robots KR1410 is listed from USD 43,900 on All Things Cobots. The controller, end effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
10 kg maximum payload with a 1400 mm reach
±0.03 mm repeatability
Speed: up to 225 deg/s
Collaborative design for work near people, subject to a risk assessment
Seventh axis adds flexibility in tight cells
Wide choice of communication interfaces
Cons
The 10 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who Should Buy the Kassow Robots KR1410?
The Kassow Robots KR1410 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
See the full Kassow Robots KR1410 product listing on All Things Cobots.
Kassow Robots KR1410 FAQ
How much does the Kassow Robots KR1410 cost?
The Kassow Robots KR1410 is listed from USD 43,900 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the Kassow Robots KR1410?
The KR1410 has a maximum payload of 10 kg and a reach of 1400 mm.
How accurate is the Kassow Robots KR1410?
Its published repeatability is ±0.03 mm.
How many axes does the Kassow Robots KR1410 have?
The KR1410 has 7 axes.
How is the Kassow Robots KR1410 programmed?
Programming is done with Kassow Robots's own software. Confirm the included interfaces and SDKs with the supplier.
Is the Kassow Robots KR1410 a collaborative robot?
Yes. The KR1410 is a collaborative robot. Every collaborative application still needs its own risk assessment.
What is the Kassow Robots KR1410 used for?
Typical applications are machine tending, dispensing, palletizing, inspection, welding and constrained workspaces.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
