IRAYPLE DH-MV-SI5500MG002E Review: Smart Vision
Updated: 7 days ago

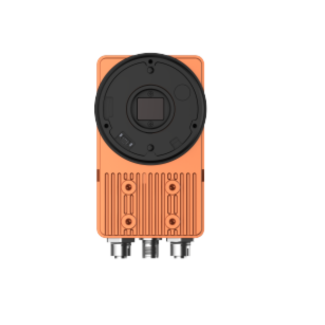

HuaRay’s IRAYPLE DH-MV-SI5500MG002E is an X86-series smart camera with a 2448 × 2048 monochrome global-shutter sensor and MVP software workflow. Image acquisition and application-result throughput must be evaluated separately. Price: Request a quote.
The camera should be selected as part of an imaging system rather than evaluated from one headline specification. The useful result is an image that reveals the required feature at the right time, followed by a reliable inspection or measurement decision. This review considers the documented acquisition package, optical implications and practical purchasing scope for DH-MV-SI5500MG002E.
Quick Verdict
The smart camera merits evaluation when an integrated image and inspection workflow fits the station and its documented communication options match the controller. The useful purchase is a reproducible inspection recipe with reliable result handling. A five-megapixel image and a maximum capture rate do not establish the time required for a particular analysis.
DH-MV-SI5500MG002E Technical Specifications
Specification | Value or configuration |
Product | IRAYPLE DH-MV-SI5500MG002E |
Image format | 2448 × 2048 monochrome pixels |
Acquisition | Global |
Interface | 1 Gbps industrial Ethernet and documented serial/application protocols |
Capture rate | Up to 35 fps image capture; analysis throughput task dependent |
Manufacturer | Zhejiang HuaRay Technology |
Sensor image | 2448 × 2048 monochrome global-shutter CMOS |
Optical format / pitch | 2/3-inch / 3.45 µm |
Capture rate | Up to 35 fps; analysis workload separate |
Lens mount | C-mount |
Software | MVP |
Power | 24 VDC; datasheet consumption ≤30 W |
Price | Request a quote |
Design and Optical Requirements
Choose C-mount optics for the actual active sensor and required feature scale. The 3.45 µm pitch helps define sampling, while working distance and magnification determine object-space detail. Check edge focus, target-height variation and illumination with real parts. A sharp central view does not establish consistent inspection over the complete field.
Acquisition Speed and Integration
The data sheet lists up to 35 fps and software-trigger, hardware-trigger and free-run acquisition. Measure the configured inspection chain, including analysis and controller communication. Global shutter controls row timing but does not remove motion blur during exposure. Test the application at the required trigger cadence with normal scene and processing variation.
Programming and Image Processing
Configure the supported MVP inspection recipe around the required feature and result. Confirm which processing functions and communication options apply to the delivered version. Preserve optical, exposure, analysis and output settings together. Test normal and faulty samples after a parameter changes, and define a reproducible backup and restoration procedure.
Image Data and Host Capacity
Budget the actual processing recipe and retained image or diagnostic data alongside controller results. A nominal image capture rate does not establish the number of completed inspection decisions per second. Test sustained triggering, result association, communication and the handling of invalid scenes. Confirm what the application stores or transfers rather than assuming every captured image is streamed to a host.
DH-MV-SI5500MG002E Applications and Use Cases
Assembly, feature and appearance inspection can merit a model-specific trial. Use actual good, faulty and borderline samples and define the expected result format. Establish how an unusable image or unsuccessful analysis is reported. A pass/fail value should remain associated with its inspected part through the controller sequence.
Building a Useful Acceptance Trial
Prepare representative parts or scenes that include the smallest required feature, normal production variation and realistic faults. Confirm the field of view and exposure before tuning the inspection. Record wrong accepts, wrong rejects, missing frames and the complete trigger-to-decision timing. A trial should also show what happens when the expected image is absent or unusable. This connects camera selection to the station's actual acceptance requirement rather than relying on a sharp reference picture.
DH-MV-SI5500MG002E Price and Value
Price: Request a quote. Ask for the complete DH-MV-SI5500MG002E ordering code and an itemized scope covering the camera, suitable optics, receiving hardware, cables, power and commissioning. Compare quotations for the same image format, acquisition mode and integration scope. The cost of a camera component is different from the cost of a working inspection station. Evaluate any financial return with the plant's actual labor, defect, rework and maintenance data; no universal payback period follows from these specifications.
Comparison and Selection
Compare the smart-camera arrangement with a camera-plus-host system on optical information, supported analysis and result communication. A more integrated package changes where processing, configuration and service occur. Compare complete working recipes and support scope rather than equating raw sensor cadence with finished inspection performance.
Ordering, Environment and Lifecycle
The current sheet lists a 1 Gbps Ethernet connection, serial communication and supported application protocols. It also identifies non-isolated GPIO; match the actual electrical interface before controller connection. Do not infer GigE Vision transport solely from the Ethernet port. Confirm the exact hardware revision, MVP version, firmware and installed protection arrangement with the supplier.
Pros and Cons
Pros
Documented monochrome global-shutter image package.
MVP and controller-communication scope are identified.
Trigger and result workflow can be specified as a complete system.
Cons
Analysis throughput is task dependent.
Electrical and communication compatibility require exact checks.
Optics and the accepted recipe remain application specific.
Who Should Buy DH-MV-SI5500MG002E?
Shortlist the smart camera when the optical task, supported processing recipe and controller interface are defined. Require a demonstration at the intended cadence with representative samples and the actual result format. Settle the complete software, electrical and service scope before purchase.
DH-MV-SI5500MG002E FAQ
What image is specified?
2448 × 2048 monochrome pixels.
What shutter is documented?
Global-shutter CMOS. Motion during exposure can still blur a feature.
Is 35 fps guaranteed inspection throughput?
No. It is the listed capture rate; analysis, communication and object association must also be measured.
Which software is named?
MVP in the manufacturer data sheet. Confirm the current supported configuration.
Does Ethernet alone mean GigE Vision?
No. Use the exact documented application protocol and integration method.
Are GPIO signals isolated?
The cited sheet identifies non-isolated inputs and outputs; match the controller’s electrical arrangement.
What is the price?
Price: Request a quote for the camera, optics, lighting, controller integration and commissioning.
What should acceptance verify?
Verify feature contrast, the actual analysis result, trigger association, communication and unusable-image handling.
Price: Request a quote. Final configuration, pricing, availability and support terms depend on the supplier's current quotation.
