GRIP DP Tray Extension Review: Specs, Price and Applications

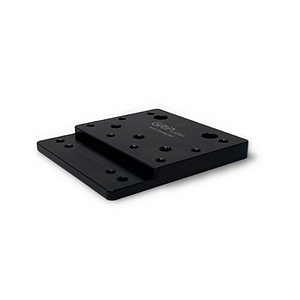

The GRIP DP Tray Extension extends the AC Tray to create a highly flexible and adaptable storage system for the Auto Connector tool changer.
It securely supports the storage plate, connector and tools, offers a flexible storage position, is compatible with common robotic tools and creates extra space for larger tools and attachments.
Quick Verdict
A simple add-on that lets the Auto Connector storage system handle bigger tools without redesigning the stand.
GRIP DP Tray Extension at a Glance
Specification | Details |
Product type | Tool tray extension |
Base product | GRIP AC Tray |
Supports | Storage plate, connector and tools |
Position | Flexible and adaptable |
Benefit | Space for larger tools and attachments |
Price | Request a quote |
Design and Operating Principle
Standard trays suit compact tools, but larger grippers or tools with attachments need more room. The DP extension adds that space while keeping the Auto Connector lower assembly correctly held.
Because the Auto Connector locks and unlocks through robot motion in the tray, secure, rigid support is essential.
Integration and Selection
Fit the extension to an AC Tray where larger tools are parked, and re-teach approach paths if positions change.
Check clearance around large tools.
Industry Applications
Industry | Typical use |
Machine tending | Large gripper storage |
Packaging | Format tool storage |
Assembly | Tool parking |
Cobots | Multi-tool stations |
Functional Uses
Large tool storage
Tray expansion
Tool change support
Flexible layout
Pros and Cons
Advantages
Space for larger tools
Secure support
Flexible position
Fits AC Tray system
Limitations
Accessory only
Dimensions not on A3
Requires AC Tray
Who Should Consider the GRIP DP Tray Extension?
The DP Tray Extension suits Auto Connector users with larger tools.
Price and Availability
Price: Request a quote. Essential Robot Products supplies the DP Tray Extension in North America and prices it by configuration and quantity. Budget for fingers or adapters, mounting, air or electrical connections and commissioning as part of the complete installation.
Further Reading
GRIP DP Tray Extension FAQ
What is the DP Tray Extension?
An extension of the AC Tray for the Auto Connector.
What does it support?
The storage plate, connector and tools.
Why use it?
To create space for larger tools and attachments.
Is the position adjustable?
Yes, it is flexible and adaptable.
Is it compatible with common tools?
Yes.
How much does it cost?
Request a quote from Essential Robot Products.
