GIMATIC VG.GX Multi-Bellows Polyurethane Suction Cups Review: Specs, Price and Applications

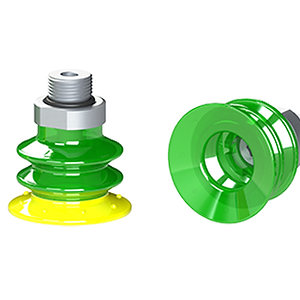

The GIMATIC VG.GX series consists of multi-bellows polyurethane suction cups designed to compensate for height differences and to handle items with porous and uneven surfaces.
The polyurethane material offers exceptional elastic memory. Cups are available in 50 Shore hardness (green) or as a two-colour 30/60 Shore version that combines a soft sealing lip with a robust body.
Quick Verdict
A strong choice for bags, cartons and irregular products where a flat cup cannot seal. The dual-hardness version balances sealing and stability.
GIMATIC VG.GX Multi-Bellows Polyurethane Suction Cups at a Glance
Specification | Details |
Product type | Multi-bellows suction cup |
Material | Polyurethane |
Hardness options | 50 Shore (green); two-colour 30/60 Shore |
Height compensation | Yes, via multiple bellows |
Surfaces | Porous and uneven |
Elastic memory | Exceptional |
Price | Request a quote |
Design and Operating Principle
Each bellows fold acts as a spring, so a multi-bellows cup can compress significantly to absorb differences in product height and adapt to tilted surfaces. When vacuum builds, the bellows contract and lift the part slightly, which helps separate stacked items.
Polyurethane is more wear-resistant than many rubbers and keeps its shape after repeated compression, which is what elastic memory refers to. That extends cup life on abrasive cardboard and plastic films.
The two-colour 30/60 Shore design uses a soft lip to seal on rough or flexible surfaces while the harder body resists collapsing under load, improving lateral stability during fast moves.
Integration and Selection
Choose cup size and count from part weight, acceleration and surface porosity; porous products need a vacuum generator with enough flow. Use the 30/60 version where sealing is difficult.
Allow for bellows compression in the robot approach height so the cups contact the product consistently.
Industry Applications
Industry | Typical use |
Packaging | Picking bags, pouches and cartons |
Logistics | Handling mixed parcels |
Food | Gripping packaged products |
Automotive | Handling curved trim parts |
Functional Uses
Height compensation
Gripping porous items
Handling uneven surfaces
Separating stacked products
Pros and Cons
Advantages
Strong height compensation
Good on porous surfaces
Durable polyurethane
Dual-hardness option
Limitations
Less stable than flat cups under lateral load
Porous parts need high-flow vacuum
Sizes must be selected from GIMATIC catalogue
Who Should Consider the GIMATIC VG.GX Multi-Bellows Polyurethane Suction Cups?
The VG.GX suits packaging and logistics grippers handling irregular, porous or variable-height products.
Price and Availability
Price: Request a quote. GIMATIC prices VG.GX cups by size, hardness and quantity. Include fittings and the vacuum generator in the gripper budget.
Further Reading
GIMATIC VG.GX Multi-Bellows Polyurethane Suction Cups FAQ
What is the VG.GX?
A multi-bellows polyurethane suction cup series from GIMATIC.
What surfaces can it handle?
Porous and uneven surfaces.
Does it compensate height differences?
Yes, the multiple bellows compensate height variation.
Which hardness options exist?
50 Shore and a two-colour 30/60 Shore version.
Why polyurethane?
It offers exceptional elastic memory and wear resistance.
How much does it cost?
Request a quote from GIMATIC.
