FANUC M-900iB/700E vs KUKA KR 1000 titan: Robot Comparison

IN A NUTSHELL

FANUC M-900iB/700E vs KUKA KR 1000 titan is a choice about heavy handling and tooling. FANUC M-900iB/700E and KUKA KR 1000 titan differ in their working envelope, loading assumptions and engineering ecosystem. A useful decision starts with the exact mechanism and process, then checks whether either robot can execute the required path with the real tool attached. This comparison separates documented specifications from application-level engineering judgments.

FANUC M-900iB/700E vs KUKA KR 1000 titan: quick verdict

Shortlist FANUC M-900iB/700E for 700 kg industrial handling within the documented 2832 mm working reference. Shortlist KUKA KR 1000 titan for 1000 kg industrial handling within the documented 3202 mm working reference. Neither is a universal winner: a robot that can carry the load may still fail the fixture-access, controller or maintenance requirements.

The numerical comparison below uses FANUC M-900iB/700E against KUKA KR 1000 titan. The stated model scope matters when comparing later revisions or differently equipped installations. Published repeatability describes return to a taught position under specified conditions; it does not establish complete-cell accuracy or prove a faster production cycle.

Specifications and exact configuration scope

Read the reach row together with the geometric notes below. Manufacturers may specify an arm-link sum, a wrist-centre motion area or reach to the flange; those dimensions are not interchangeable. The table does not establish access to every point at every tool angle. Controller references identify reviewed packages, and actual compatibility must be confirmed by model, software version and region.

FANUC M-900iB/700E: design and configuration

The FANUC M-900iB/700E is the named 6-axis configuration with 700 kg payload, 2832 mm horizontal reach and ±0.1 mm repeatability in the reviewed model scope. The E version is the high-rigidity configuration for large-part handling and constant-force applications. Keep its mechanical revision, load diagram and base arrangement distinct from the standard 700 model. Wrist moments, fixture inertia, floor reactions and controlled recovery are decisive at this scale. The control baseline is R-30iB Plus package; verify cabinet and supplied generation; cabinet, industrial-network licences, safety options and process software must be named in the quotation.

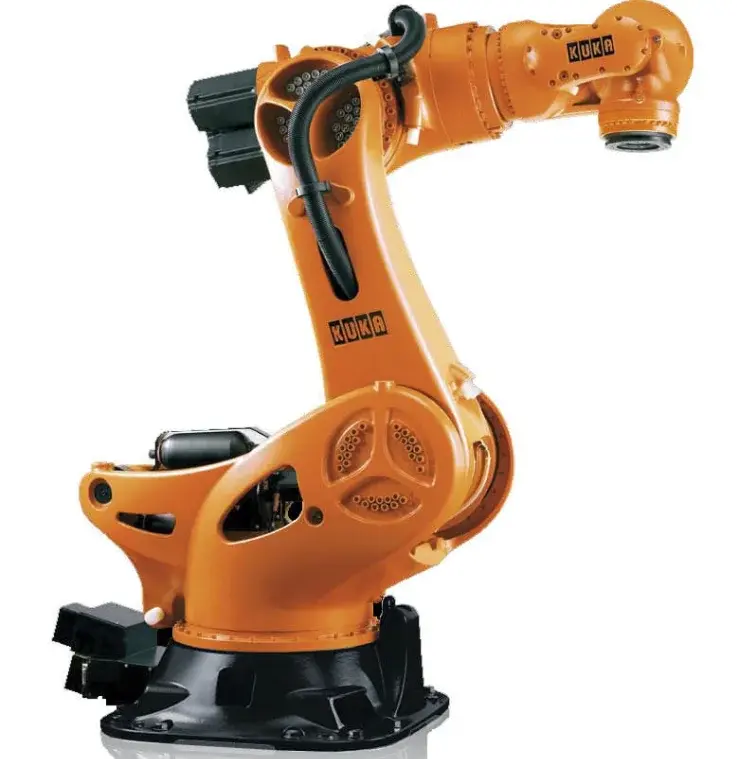

KUKA KR 1000 titan: design and configuration

The KUKA KR 1000 titan is assessed here at the reviewed 1000 kg payload and 3,202 mm working reference, with 6 arm axes, confirm the exact revision repeatability and the KR C5 controller scope. The titan is a very-high-payload industrial platform. The complete fixture, gripper, carried component, load centre and dynamic inertia must be approved; the nominal 1000 kg rating does not establish capacity at every offset or pose. Foundation reactions, lifting access and loaded stopping/recovery behaviour dominate installation planning.

For this pair, KUKA KR 1000 titan offers 1000 kg over the stated 3202 mm reference, compared with 700 kg and 2832 mm for FANUC M-900iB/700E example. KUKA KR 1000 titan has the larger stated distance by 370 mm, but this difference is only a preliminary layout indicator because reference points and joint envelopes can differ. Locate the actual fixture in each manufacturer model before treating this as usable extra working space.

Payload, tooling and a worked load example

Consider an illustrative total wrist load of 560 kg: a 140 kg tool and adapter package carrying a 420 kg part or product group. This arithmetic leaves 140 kg below the FANUC M-900iB/700E example’s nominal limit and 440 kg below KUKA KR 1000 titan’s nominal limit. These are mass differences, not safety factors or a validated load approval. A heavy camera, valve block or retained material must be included before recalculating the total.

The example exposes the practical question: is the application limited by mass, by tool offset or by wrist rotation? FANUC M-900iB/700E is the lower-or-equal nominal payload choice in this pair. KUKA KR 1000 titan offers more or equal headline mass capacity, but that alone cannot approve an eccentric fixture. Moving the same mass farther from the flange increases the moment, and spreading it increases rotational inertia. Manufacturer load diagrams and the actual centre of gravity govern the final allowable motion.

Model the empty, partly loaded and fully loaded tool states separately. A vacuum layer gripper, a weld torch with hoses or an inspection head may change its effective loading during the cycle. Set the controller’s load data for each supported state and validate the transition logic. A payload table cannot predict acceleration derating, cable pull or transient reactions at a machine interface.

Reach, orientation and fixture access

Build the same cell model for both candidates: base height, machine opening, fixture datum, maximum part size, tool extension and access for maintenance. FANUC M-900iB/700E provides a stated 2832 mm reference, while KUKA KR 1000 titan provides 3202 mm. Check the deepest production pose and the return path with the loaded tool. An arm that just touches the target at full extension may have little freedom left to turn, retract or avoid a door.

For assembly and machine tending, test the gripper jaws in their open and closed positions. Include feeder replenishment, rejected-part disposal and tool changes. Check wrist flips and singularity avoidance along the whole path. A compact robot can fit a small fixture well, while a longer arm can simplify station placement; neither geometric benefit can be assumed without the actual model.

Precision and throughput: compare the same task

The comparison uses ±0.1 mm for FANUC M-900iB/700E and Confirm exact revision for KUKA KR 1000 titan. These figures should be read in their documented configuration scope. Repeatability is not absolute accuracy, camera calibration accuracy or finished-part capability. Fixture variation, TCP calibration, thermal conditions and tool compliance can dominate the error at the process point, especially when the tool extends far from the flange.

Ask each integrator to execute the same representative path with the same payload model, tool length, process dwell and stop conditions. Report transfer time, settling time, process time and waiting time separately. Published standard cycles often use different loads and distances; dividing one catalogue cycle by another would not establish the production advantage of FANUC M-900iB/700E over KUKA KR 1000 titan. Use a measured or validated application cycle before assigning a throughput benefit.

Programming, controls and production integration

FANUC M-900iB/700E is paired here with R-30iB Plus package; verify cabinet and supplied generation, while KUKA KR 1000 titan uses KR C5. Controller names identify the review baseline rather than a guarantee that all interface options are included. Compare the actual software revision, teaching workflow, diagnostic tools, fieldbus licences and recovery procedures. An existing trained team and reusable production code may outweigh a small dimensional advantage. Obtain a demonstration of the same machine handshake and interrupted-cycle recovery on both platforms.

Specify the PLC handshakes before ordering: cycle request, ready, busy, complete, fault, part present and recovery authorization. Define how an interrupted operation resumes without repeating a dangerous or quality-critical action. Vision, force sensing, fieldbus communication and external-axis coordination must be checked as explicit included or optional functions. An Ethernet connector does not by itself prove that a particular industrial protocol or software interface is licensed and supported.

Configuration and communication detail

Protection, installation and maintenance

Match the precise protection package to the process. Standard, protected, cleanroom, foundry and washing configurations can have different seals, services and maintenance requirements. Do not transfer the best optional IP or cleanroom rating to an unprotected base model. Check the controller location, cable bend radius, available lifting access and base reactions with the installer.

Treat safe operation as a property of the complete task and installation. Include the tool, sharp workpiece edges, trapping points, dropped loads and machine access. These robot systems require task-specific safeguarding; payload or compact size does not establish safe unguarded operation. Plan tool replacement and fault recovery without dismantling the whole installation, and include connector access, lubrication and spare-cable replacement in the maintenance layout.

Price and lifecycle value

Published arm list prices: FANUC M-900iB/700E is listed from $230,000 and KUKA KR 1000 titan is listed from $150,000. Request configuration-specific quotations for FANUC M-900iB/700E and KUKA KR 1000 titan. An arm-only number is not the price of a commissioned production cell. Ask for separate line items for controller, pendant, communication options, end effector, safety equipment, installation, acceptance, training and warranty. Price changes, regional support and included software can reverse an apparent hardware-cost advantage. Compare the same delivered scope before calculating payback.

Compare the installed production scope: tool, fixtures, sensing, guarding, machine interface, programming, acceptance and training. For heavy handling, include lifting, foundations, cable routing and fixture load verification. Keep purchase cost and recurring support costs separate. No payback figure is defensible until the actual cycle, yield, utilization and installation quotation are known.

Selection and acceptance plan

Advance FANUC M-900iB/700E when 700 kg industrial handling within the documented 2832 mm working reference solves the real constraint and its selected configuration passes the load and access checks. Advance KUKA KR 1000 titan when 1000 kg industrial handling within the documented 3202 mm working reference provides the more suitable process arrangement. Reject either candidate if a mandatory pose, protection requirement or controller function cannot be demonstrated. A purchasing shortlist should preserve these conditions instead of converting a single catalogue advantage into a blanket recommendation.

Before acceptance, agree the representative parts, tool states, operating sequence and quality criteria with both suppliers. Demonstrate cold start, normal production, rejected parts, interrupted cycles and controlled recovery. Record the final tool data and software backup. This turns the comparison into a repeatable purchasing decision and helps prevent a later fixture change from invalidating the original robot selection.

Motion architecture and functionality

FANUC M-900iB/700E has 6 arm axes and KUKA KR 1000 titan has 6 arm axes. Both have six arm axes; equal axis counts do not establish equal joint travel, inner workspace or fixture access. Compare tool detection, sensing, machine I/O and recovery as separate delivered functions.

Industries and application fit

For FANUC M-900iB/700E vs KUKA KR 1000 titan, use the actual part and process as the industry filter. Electronics, manufactured-component handling and machine tending are candidate uses when their tool mass, access and quality requirements fit the documented configurations. These are application-selection judgments, not claims that either exact model is installed at a named customer. A food, medical-device or clean-production application additionally requires the correct material, lubrication and protection package; the base model name does not establish hygienic or cleanroom compliance.

Frequently asked questions

Which robot is better for this application?

FANUC M-900iB/700E is the stronger starting point for 700 kg industrial handling within the documented 2832 mm working reference, while KUKA KR 1000 titan is worth shortlisting for 1000 kg industrial handling within the documented 3202 mm working reference. The final choice depends on the real loaded path, required protection, controls and acceptance results. Neither a higher payload nor a longer reach establishes a universal winner.

What payload should I use for the comparison?

Use 700 kg for the specified FANUC M-900iB/700E example and 1000 kg for KUKA KR 1000 titan, subject to all documented load and orientation conditions. Include the tool, adapters, sensors and carried part. Confirm exact configuration, controller, wrist loading and installation envelope.

Does the stated reach guarantee access to my fixture?

No. The comparison gives 2832 mm for FANUC M-900iB/700E and 3202 mm for KUKA KR 1000 titan using the stated model references. Joint limits, reach reference points, wrist orientation, tool length and collisions determine whether the actual fixture is accessible. Simulate the full approach and exit path.

Can I use the best specifications from every family variant?

No. Keep each named model and revision intact. A different arm length, controller generation or protection option can change the relevant specification. Do not combine one version’s maximum payload with another version’s maximum reach.

Is repeatability the same as finished-part accuracy?

No. The stated values are ±0.1 mm for FANUC M-900iB/700E scope and Confirm exact revision for the competitor scope. Finished-part results also depend on fixtures, TCP calibration, sensing, thermal conditions and tool compliance. Validate the actual process instead of treating catalogue repeatability as a complete accuracy guarantee.

How should purchase prices be compared?

Use current written quotations for FANUC M-900iB/700E and KUKA KR 1000 titan with the same arm, controller, software, tooling and commissioning scope. This comparison does not represent an ATC sales offer or stock confirmation. Historical review figures are not a substitute for a configuration-specific purchase quotation.

Can these robots operate safely next to people without guarding?

These specifications do not establish a safe unguarded installation. Assess the complete task, tool, load and machine interface, then implement and validate the required safeguarding and operating procedures. Do not infer collaborative operation from a compact arm, limited payload or education setting.

What should an acceptance test compare?

Use the same parts, actual tool load, fixture locations, path and quality criteria for FANUC M-900iB/700E and KUKA KR 1000 titan. Check production timing, settling, interruptions and recovery. Include the most difficult loaded approach and retreat. Approve the exact delivered configuration and preserve its final settings.
