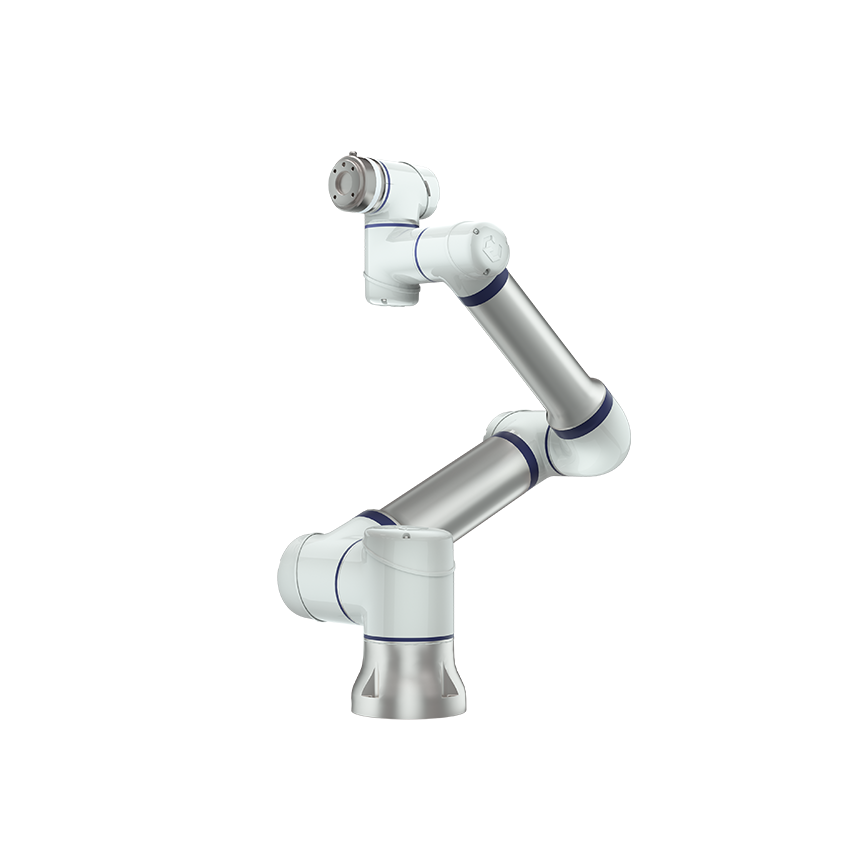

Elite Robots CS66 Review: Specs, Price and Applications of the 6 kg Collaborative Robot
Updated: 2 days ago
The Elite Robots CS66 is a 6-axis collaborative robot with a maximum payload of 6 kg, a reach of 914 mm and ±0.03 mm repeatability, listed from USD 22,400. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The Elite Robots CS66 is a 6-axis collaborative robot with a 6 kg payload, a 914 mm reach and a repeatability of ±0.03 mm. It is designed for machine tending, assembly, pick-and-place and inspection tasks, with a maximum TCP speed of 2.8 m/s. The arm weighs 20 kg, has a Ø 150 mm footprint and is rated IP65, with IP68 as an option. It runs from a standard AC control cabinet rated IP44 or a compact OEM DC/AC controller, and communicates over Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP and PROFINET. It is listed from USD 22,400.
Elite Robots CS66 at a Glance
Maximum payload: 6 kg
Reach: 914 mm
Axes: 6
Repeatability: ±0.03 mm
Speed: 2.8 m/s
Weight: 20 kg
Controller: Standard AC control cabinet, 505 × 257 × 462 mm, 14 kg, IP44; OEM DC/AC controller optional
Price: from USD 22,400
Elite Robots CS66 Technical Specifications
The table below lists the published specifications of the Elite Robots CS66.
Specification | Elite Robots CS66 |
Manufacturer | Elite Robots |
Model | CS66 |
Robot type | 6-axis collaborative robot |
Maximum payload | 6 kg |
Reach | 914 mm |
Axes | 6 |
Repeatability | ±0.03 mm |
Speed | 2.8 m/s |
Controller | Standard AC control cabinet, 505 × 257 × 462 mm, 14 kg, IP44; OEM DC/AC controller optional |
Interfaces | Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP slave, PROFINET slave, RS485, 24 digital inputs, 24 digital outputs, 2 analog inputs, 2 analog outputs, tool flange RS485 with 4 digital inputs, 4 digital outputs, 1 analog input, 1 analog output |
Certifications | CE, UL, KCs, RoHS, ISO 10218, ISO 13849, SEMI S2, ISO 14644 cleanroom class 5 |
Starting price | From USD 22,400 |
Detailed Technical Data
6 axes
Payload 6 kg
Reach 914 mm
Repeatability ±0.03 mm
Max. TCP speed 2.8 m/s
Joint speeds 150°/s (J1–J2), 180°/s (J3), 230°/s (J4–J6)
Weight 20 kg
Footprint Ø 150 mm
IP65, IP68 optional
Typical power 250 W
Operating temperature -10 to 50 °C
Design and Build Quality
The CS66 is a 6-axis collaborative robot made by Elite Robots. Published build data: weight 20 kg; footprint Ø 150 mm; IP65, IP68 optional.
Programming and Software
Controller and Software
Published controller for the CS66: Standard AC control cabinet, 505 × 257 × 462 mm, 14 kg, IP44; OEM DC/AC controller optional. Programming interfaces, software licences and simulation tools vary by package, so confirm what is included before ordering.
Industrial Communication
Published interfaces are Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP slave, PROFINET slave, RS485, 24 digital inputs, 24 digital outputs, 2 analog inputs, 2 analog outputs and tool flange RS485 with 4 digital inputs, 4 digital outputs, 1 analog input, 1 analog output.
Elite Robots CS66 Applications and Use Cases
Typical applications for the CS66 are machine tending, palletizing, inspection, dispensing and assembly.
Machine tending
The CS66 loads and unloads machine tools, presses and moulding machines within its 914 mm reach.
Palletizing
The CS66 stacks cases, bags and crates onto pallets, lifting up to 6 kg including the gripper.
Inspection
The CS66 presents parts to cameras and gauges, or carries the sensor to the part.
Elite Robots CS66 Price and Value
The Elite Robots CS66 is listed from USD 22,400 on All Things Cobots. The controller, end effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
6 kg maximum payload with a 914 mm reach
±0.03 mm repeatability
Speed: 2.8 m/s
Collaborative design for work near people, subject to a risk assessment
Wide choice of communication interfaces
Cons
The 6 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who Should Buy the Elite Robots CS66?
The Elite Robots CS66 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
See the full Elite Robots CS66 product listing on All Things Cobots.
Elite Robots CS66 FAQ
How much does the Elite Robots CS66 cost?
The Elite Robots CS66 is listed from USD 22,400 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the Elite Robots CS66?
The CS66 has a maximum payload of 6 kg and a reach of 914 mm.
How accurate is the Elite Robots CS66?
Its published repeatability is ±0.03 mm.
How many axes does the Elite Robots CS66 have?
The CS66 has 6 axes.
How is the Elite Robots CS66 programmed?
Programming is done with Elite Robots's own software. Confirm the included interfaces and SDKs with the supplier.
Which controller does the Elite Robots CS66 use?
Published controller: Standard AC control cabinet, 505 × 257 × 462 mm, 14 kg, IP44; OEM DC/AC controller optional.
How much does the Elite Robots CS66 weigh?
Published weight 20 kg.
Is the Elite Robots CS66 a collaborative robot?
Yes. The CS66 is a collaborative robot. Every collaborative application still needs its own risk assessment.
What is the Elite Robots CS66 used for?
Typical applications are machine tending, palletizing, inspection, dispensing and assembly.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
