COVAL PSD100CPNP Review: Specs, Price and Integration
Updated: 7 days ago

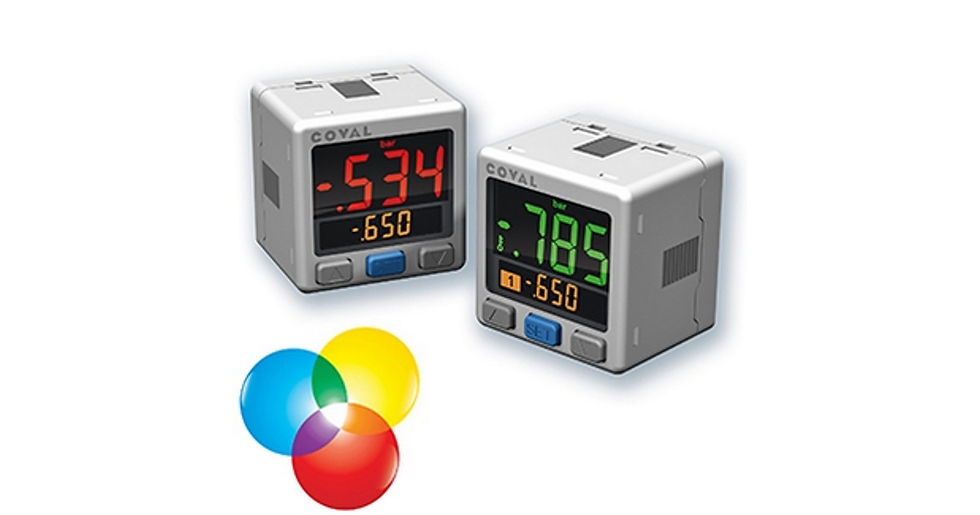

COVAL PSD100CPNP is a compact vacuum switch with a three-colour display, one PNP output and an analog output. Radwell lists the exact part at an indicative US$253.93 in its New Product category; condition and warranty terms must be checked.
Technical Specifications
Parameter | Specification |
Application | Vacuum-level monitoring |
Display | Three-colour; measured and threshold values |
PSD100CPNP outputs | 1 PNP digital output and 1–5 V analog output |
Electrical connection | M8 connector |
Protection | IP40 |
Price reference | US$253.93; Radwell New Product listing |
Quick Verdict
PSD100CPNP deserves consideration when a vacuum-handling installation needs a local indication and electrical outputs for the control system. Its practical value is the ability to make a defined vacuum condition visible and usable by the application. It does not establish gripping reliability on its own. The complete arrangement still depends on the cup, workpiece, generator, plumbing, measurement point and process sequence.
Design and Display
COVAL describes a display that presents the measured value and threshold together. That can help an operator relate the live reading to the intended switching point. Place the device where the display can actually be read during setup and service, without forcing access into an unsafe machine position. Record the selected units and threshold convention so a replacement or shift change does not introduce a different interpretation.
Output Configuration
The exact part number matters. PSD100CPNP uses an M8 connection with one PNP digital output and an analog output; the PSD100LPNP2 alternative uses a different connection and two digital outputs. Compare those functions against the controller inputs before treating the versions as substitutes. Keep the wiring and PLC interpretation with the sensor settings, especially when an existing installation has been modified.
Integration and Threshold Selection
Establish the normal vacuum behavior with representative workpieces and operating conditions. Then define the process condition that should be accepted or rejected. Consider the full sequence: initial pickup, movement, holding and release. A threshold chosen from one successful pickup may be unsuitable when surface condition or leakage changes. Validate the decision in the machine application rather than treating the display colour as proof that the part is securely held.
Environment and Installation
The manufacturer lists IP40 protection. Assess that against the actual dust, liquid and cleaning exposure at the intended mounting point. Do not treat a protective accessory as evidence of a different enclosure rating unless that configuration is documented. Provide access for adjustment and inspection, and ensure that service personnel can identify the vacuum connection and electrical cable without tracing the whole machine.
Applications and Use Cases
Evaluate this switch for a vacuum gripper station, a handling fixture or a test setup requiring an electrical indication of a defined vacuum level. These are selection scenarios rather than claims of a tested customer installation. Record a baseline with the intended parts and include deliberately difficult examples. A useful evaluation distinguishes a seal problem from a pneumatic restriction, an incorrect setting or a control-sequence error.
Price and Value
Radwell's exact PSD100CPNP listing shows US$253.93 in the New Product category. The page separately shows lower prices for other condition and packaging categories; those are not equivalent purchase terms. Radwell states that it is not an authorized COVAL distributor and that its own warranty applies, while factory warranty may not. Confirm the selected category, included items, warranty and final delivered price. This published price is indicative and may change.
Comparison and Selection
Compare PSD100CPNP with the two-digital-output PSD100LPNP2 by the signals the application actually needs. An analog value and a discrete threshold can serve different purposes from two discrete outputs. Include controller input compatibility, connector or cable arrangement, mounting and commissioning effort in the comparison. A lower sensor price is not a saving if the selected variant requires an unplanned change to the machine controls.
Who Should Buy PSD100CPNP?
Shortlist this model when its exact output arrangement and environment rating fit a documented vacuum-monitoring requirement. Before purchasing, identify the measurement point and intended control decision. For a spare, match the full part number, settings and wiring. After installation, exercise representative pickup, hold and release sequences and preserve the accepted settings with the machine records.
Pros
Local display of measured and threshold values
Defined PNP-plus-analog output arrangement
Manufacturer offers alternative output and mounting configurations
Cons
IP40 limits environmental suitability
Output and connection variants are not interchangeable by name alone
A vacuum threshold does not independently validate secure gripping
PSD100CPNP FAQ
What is PSD100CPNP?
It is a COVAL vacuum switch in the PSD100 family with a local display and electrical outputs for monitoring.
Which outputs does this exact version have?
The manufacturer specifies one PNP digital output and a 1–5 V analog output for the M8-connected PSD100CPNP.
Is PSD100LPNP2 the same version?
No. It has two PNP outputs and a cable arrangement. Match the exact part to the required control inputs.
What does the US$253.93 price cover?
It is Radwell's displayed New Product category price for PSD100CPNP. The supplier's condition, warranty and delivered-price terms apply.
Is Radwell an authorized COVAL distributor?
Radwell explicitly states that it is not authorized by COVAL and that its own warranty applies.
Can I use it in any washdown environment?
The referenced manufacturer information lists IP40. Assess the exact installation exposure and documented protection.
Does a good vacuum reading prove secure gripping?
The complete gripping arrangement and process must be evaluated. A sensor reading is one input to that assessment.
What should be kept with a spare?
Keep the exact part number, wiring, units, threshold settings and results of the representative operating test.
Prices are indicative and may change with model, condition and supply terms.
