ABB IRB 2600 Review: Specs, Price and Applications of the 12–20 kg Industrial Robot
Updated: 2 days ago

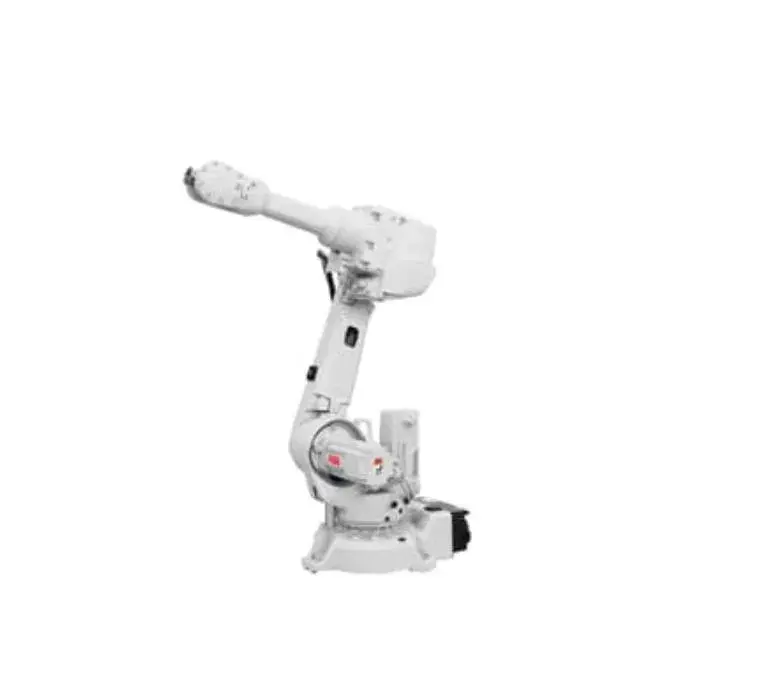

The ABB IRB 2600 is a six-axis industrial robot with a payload of 12–20 kg, a reach of 1650–1850 mm and ±0.04 mm repeatability, listed from USD 50,000. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The IRB 2600 is a mid-size six-axis robot with a payload of 12 or 20 kg, a reach of 1650 or 1850 mm and ±0.04 mm repeatability. It is used for machine tending, material handling and arc welding, and is listed from USD 50,000.
ABB IRB 2600 at a Glance
Payload: 12–20 kg
Reach: 1650–1850 mm
Axes: 6
Repeatability: ±0.04 mm
Controller: ABB IRC5 or OmniCore
Price: from USD 50,000
ABB IRB 2600 Technical Specifications
The table below lists the published specifications of the ABB IRB 2600.
Specification | ABB IRB 2600 |
Manufacturer | ABB Robotics |
Model | IRB 2600 |
Robot type | Six-axis industrial robot |
Payload | 12–20 kg |
Reach | 1650–1850 mm |
Axes | 6 |
Repeatability | ±0.04 mm |
Controller | ABB IRC5 or OmniCore |
Interfaces | PROFINET, EtherNet/IP, digital I/O |
Certifications | ISO 10218-1 |
Starting price | From USD 50,000 |
Detailed Technical Data
6 axes
Variants 12 kg / 1650 mm, 12 kg / 1850 mm and 20 kg / 1650 mm
Repeatability ±0.04 mm
Mounting floor, wall, inverted, tilted
Protection IP67, Foundry Plus 2 optional
Controller IRC5 or OmniCore V250XT / V400XT
Design and Build Quality
The robot can be floor, wall, inverted or tilted mounted. It is rated IP67, with Foundry Plus 2 as an option, and runs on the IRC5 or OmniCore V250XT / V400XT controller. Variants are 12 kg / 1650 mm, 12 kg / 1850 mm and 20 kg / 1650 mm.
Programming and Software
Controller
The IRB 2600 runs on the ABB IRC5 or OmniCore controller. OmniCore is ABB's current robot controller family, and IRC5 is its long-established predecessor.
RAPID and RobotStudio
Programs are written in ABB's RAPID language and can be created, simulated and tested offline in RobotStudio before they are loaded to the robot.
Industrial Communication
Published interfaces are PROFINET, EtherNet/IP and digital I/O.
ABB IRB 2600 Applications and Use Cases
Typical applications for the IRB 2600 are machine tending, material handling and arc welding.
Machine Tending
The 20 kg version handles heavier workpieces and dual grippers, and IP67 protection suits machining environments.
Material Handling
Reaches up to 1850 mm let one robot serve several stations.
Arc Welding
The 12 kg long-reach version covers large weldments with ±0.04 mm repeatability.
ABB IRB 2600 Price and Value
The ABB IRB 2600 is listed from USD 50,000 on All Things Cobots. The controller configuration, end effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
Up to 20 kg payload or 1850 mm reach
IP67 as standard
Floor, wall, inverted or tilted mounting
Foundry Plus 2 option
Runs on IRC5 or OmniCore
Cons
±0.04 mm repeatability is wider than on ABB's smaller robots
No 20 kg version with 1850 mm reach
Starting price of USD 50,000
Who Should Buy the ABB IRB 2600?
The IRB 2600 fits machine shops, foundries and fabricators that need a mid-size robot with IP67 protection and flexible mounting.
See the full ABB IRB 2600 product listing on All Things Cobots.
ABB IRB 2600 FAQ
How much does the ABB IRB 2600 cost?
The ABB IRB 2600 is listed from USD 50,000 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the ABB IRB 2600?
The IRB 2600 has a payload of 12–20 kg and a reach of 1650–1850 mm.
How accurate is the ABB IRB 2600?
Its published repeatability is ±0.04 mm.
How many axes does the ABB IRB 2600 have?
The IRB 2600 has 6 axes.
Which controller does the ABB IRB 2600 use?
It runs on the ABB IRC5 or OmniCore controller and is programmed in ABB's RAPID language.
How can the ABB IRB 2600 be mounted?
Published mounting options: floor, wall, inverted, tilted.
What is the protection rating of the ABB IRB 2600?
Its published protection rating is IP67, Foundry Plus 2 optional.
What is the ABB IRB 2600 used for?
Typical applications are machine tending, material handling and arc welding.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
